Gecko AquaFlo TMCP 1.5 HP Wet End [1-1/2" MBT] [48 Frame] (91041015)

Discontinued by manufacturer

Gecko Alliance has 25 years of experience in the design and manufacturing of interfaces and controls of all types, and it has made them experts in product interaction and user behavior. Simplicity, intuition, elegance and performance are not only starting points of design projects but driving forces of Gecko creativity. Gecko designs meaningful products, creates great user experiences and builds strong and long-lasting relationships with their customers. That is why Gecko makes the perfect partner for the spa user!

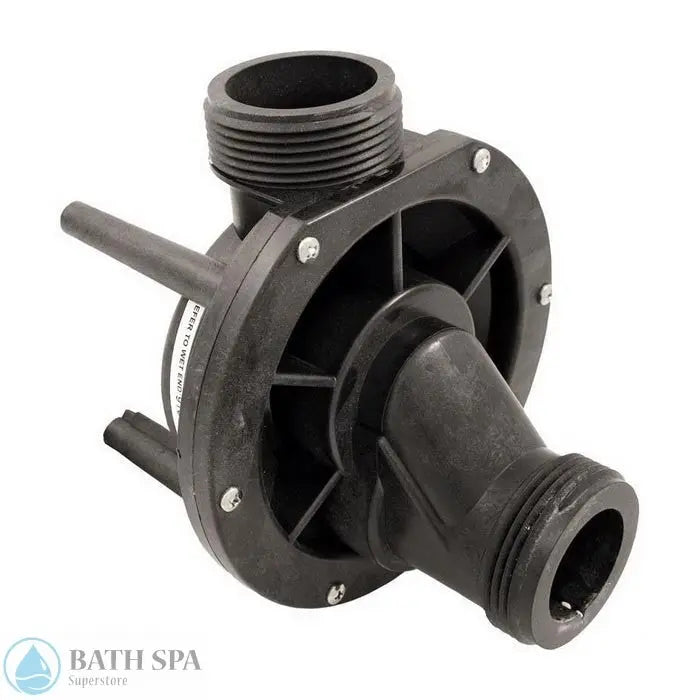

Bottom suction, center discharge, 1-1/2"mbt suction/discharge, 48 frame 100% drain wet end for TMCP pump. This wet end is used with a 1.5hp, 48Y frame, thru-bolt style motor. The motor used may be either a single or dual speed. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.

Specifications:

• Pump to Motor Foot Types: 15
• Motor Frame: 48 Frame Thru-Bolt
• Drain Plug Location: None
• Suction Auxillary Port: None
• Suction Style: Center
• Suction Connection (Physical Dimension): 2-7/16"od
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 1-1/2"
• Discharge Auxilary Port: None
• Discharge Style: Side
• Discharge Connection (Physical Dimension): 2-7/16"od
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 1-1/2"
• Horsepower: 1.5hp
• Manufacturer: AquaFlo/Gecko
• Pump Model: Flo-Master TMCP
• Manufacturer Impeller Number: 91693651
• Volute Fastening Type: 6 Screws
• Volute/Sealplate Number: 92770603
