Balboa 5.5kW Slave System [Titanium] [58136] w/heater (55986)
Balboa Water Group 5.5kW Auxiliary Slave Heater System
This Balboa Auxiliary 5.5kW Heater is installed in-line and typically used with larger spas & hot tubs that require additional heating. It can also be used with nearly all Balboa controls with M7 sensors.
This system includes a built in high limit sensor. M7 sensors are not included. Flow detection is handled by the master control box.
- Works with system 58136
- This system includes a built in high limit sensor.
- M7 sensors are not included.
- Flow detection is handled by the master control box.
| Housing Configuration |
Straight |
| Manufacturer |
Balboa Water Group |
| Heater Length |
15" |
| Supply Voltage |
230v - 3 Wire |
| Heater Type |
Fixed - Bottom |
| Heater Wattage |
5.5kW |
| Kilowatts |
5.5kW |
| Voltage |
230v |
| Amperage |
22a |
| Mounting Stud Type |
Fixed |
| Heater Size |
2" |
| Heater Application |
Balboa Water Group |
| 50/60 HZ |
50Hz, 60Hz |
| Part Type |
Auxiliary Heater |
![Balboa 5.5kW Slave System [Titanium] [58136] w/heater (55986) Spa Parts: Spa Control Systems (Balboa) 58133_XL](http://bathparts.com/cdn/shop/products/58133_XL.jpg?v=1769976163&width=1600)

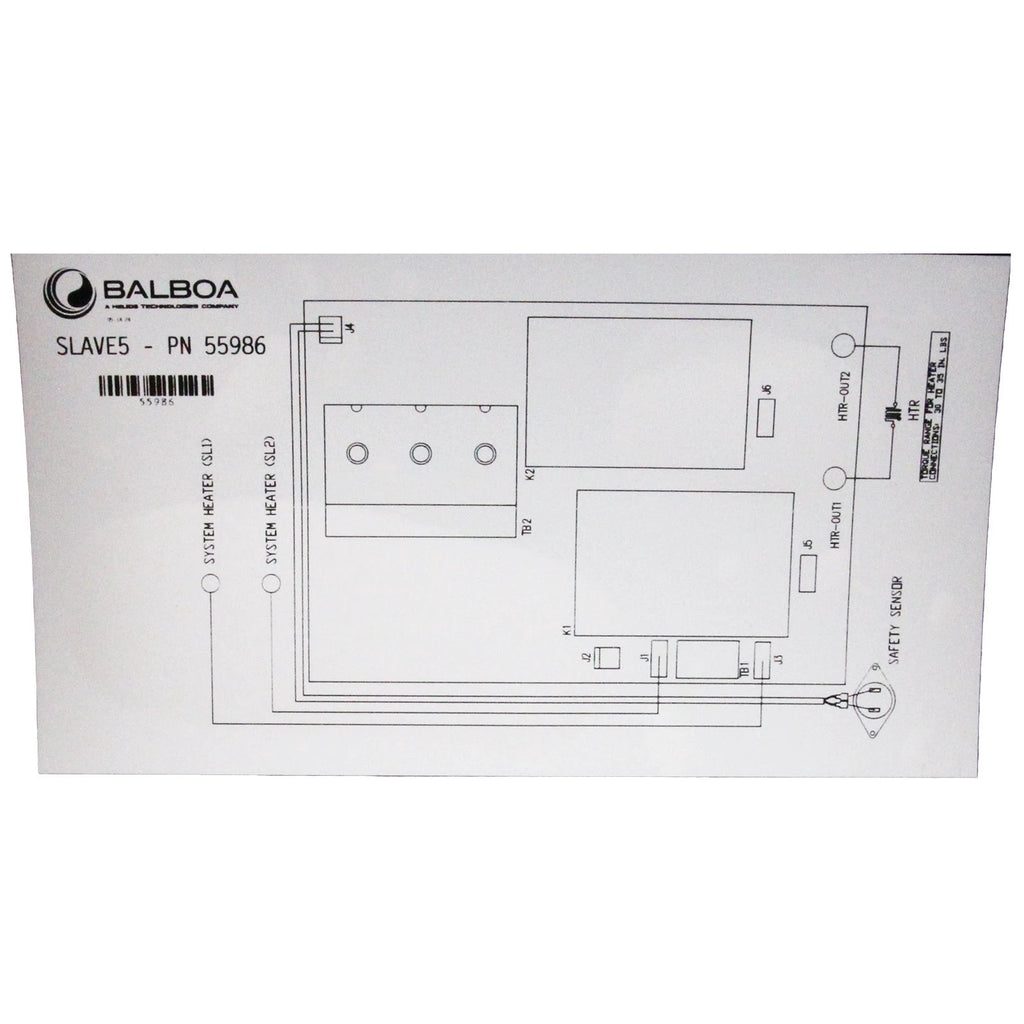

![Balboa 5.5kW Slave System [Titanium] [58136] w/heater (55986) Spa Parts: Spa Control Systems (Balboa) 46-138-1380_3-SCHEMATIC__XL](http://bathparts.com/cdn/shop/files/46-138-1380_3-SCHEMATIC__XL.jpg?v=1769976161&width=1600)

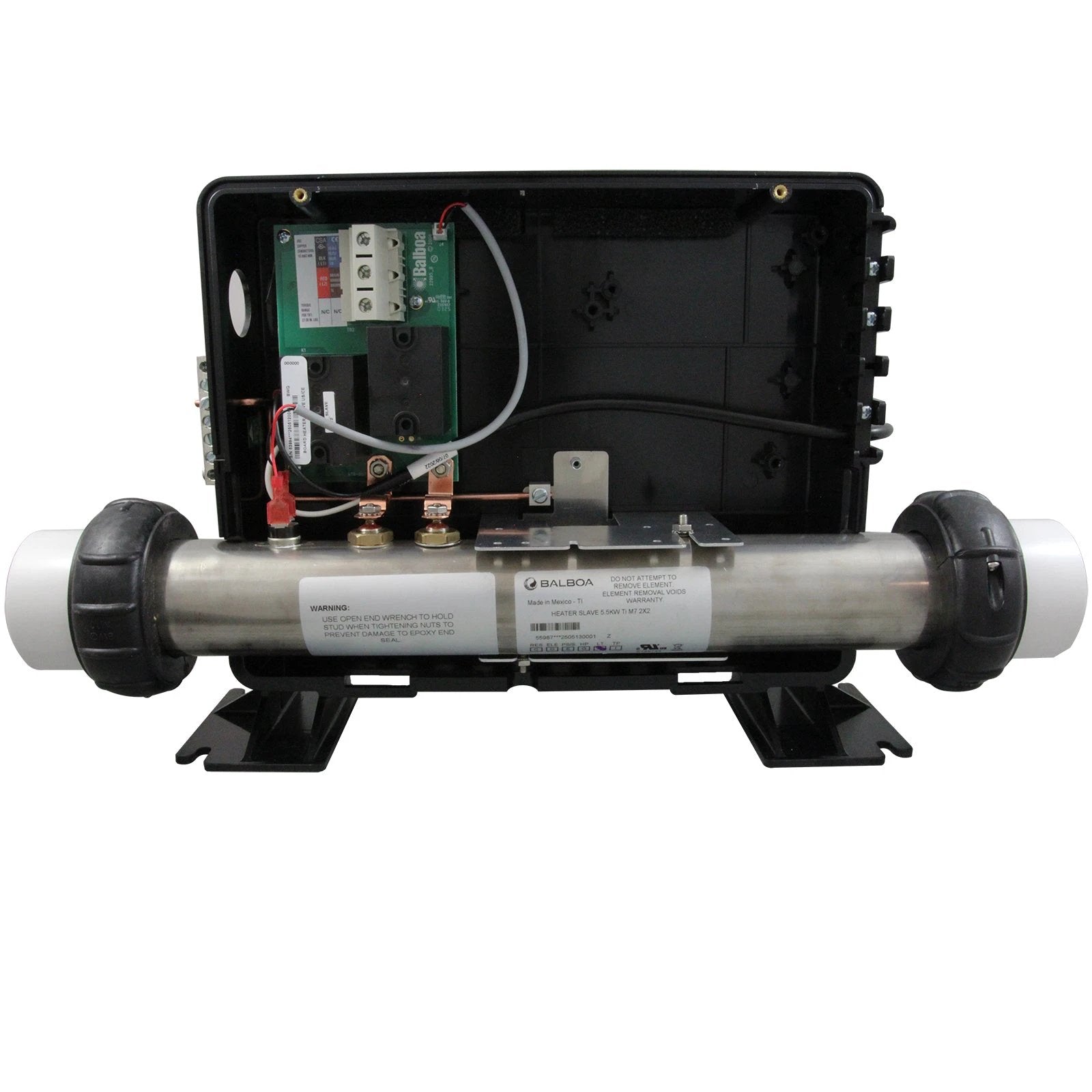

![Balboa 5.5kW Slave System [Titanium] [58136] w/heater (55986) Spa Parts: Spa Control Systems (Balboa) 46-138-1380_2-INSIDE__XL](http://bathparts.com/cdn/shop/files/46-138-1380_2-INSIDE__XL.jpg?v=1769976161&width=1600)
![Balboa 5.5kW Slave System [Titanium] [58136] w/heater (55986) Spa Parts: Spa Control Systems (Balboa) 46-138-1380_4-LABEL__XL](http://bathparts.com/cdn/shop/files/46-138-1380_4-LABEL__XL.jpg?v=1769976161&width=1600)

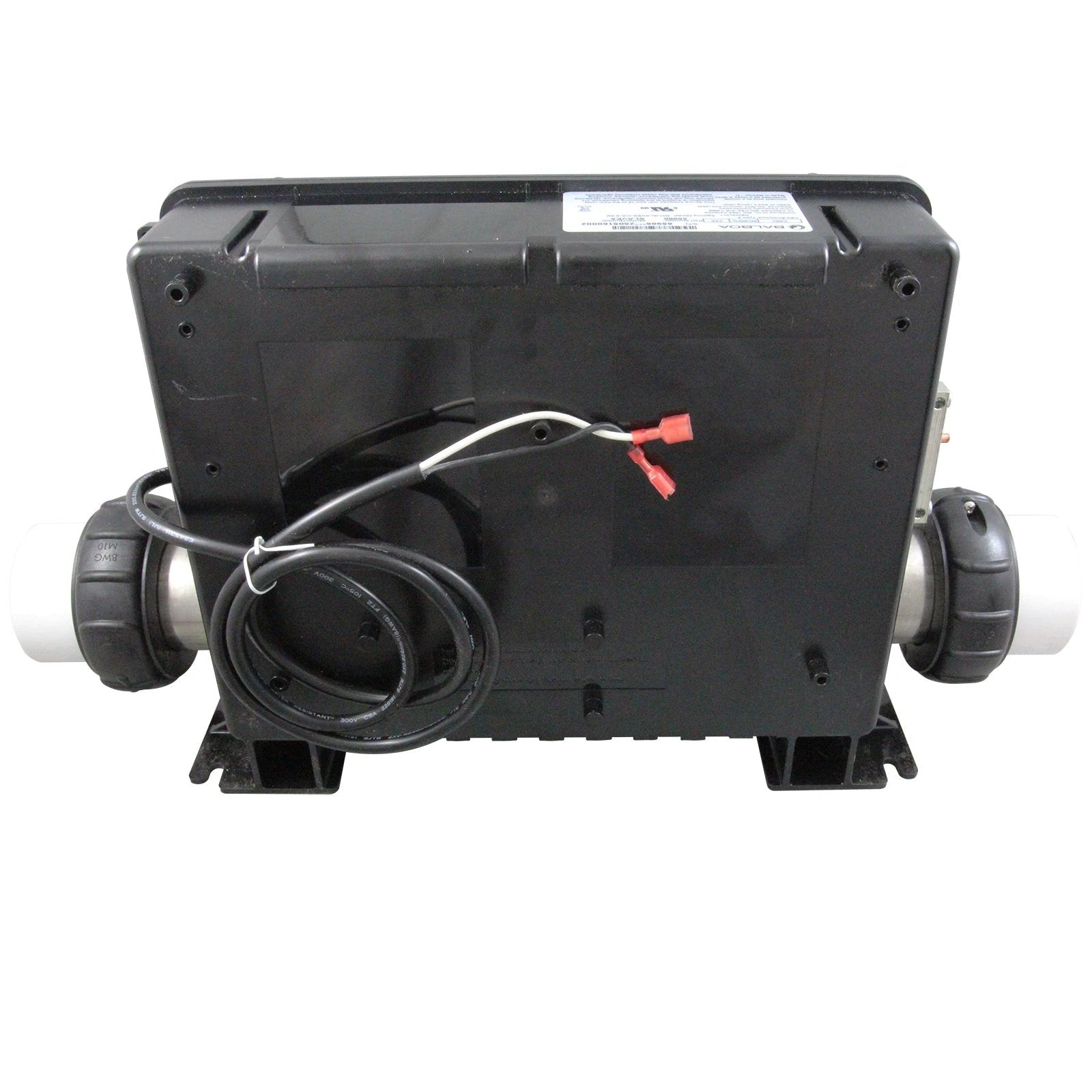

![Balboa 5.5kW Slave System [Titanium] [58136] w/heater (55986) Spa Parts: Spa Control Systems (Balboa) 46-138-1380_1-REV__XL](http://bathparts.com/cdn/shop/files/46-138-1380_1-REV__XL.jpg?v=1769976161&width=1600)
