Balboa Water Group VS501Z Control System with 5.5kW Heater
Features:
- Controls a two-speed pump
- One-speed pump or blower
- 115/230v Ozone circuit
- 115/230v Circ Pump circuit (30GPM minimum)
- 12v spa light circuit
- Patented M7™ technology
- Plumb on pressure or vacuum side
- US & Canadian safety approvals
Balboa Hot Sheets: Wiring Diagram and Dip switch Settings Click HERE
The Value Series (VS) family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service.
The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.375/5.5kW heater and can support mini, duplex, or standard digital control panels.
Control Box Dimensions
| Height |
Width |
Depth |
| 10-9/16" |
12-1/4" |
4-1/2" |
![Balboa BP7 5.5kW Retrofit Kit [Jacuzzi R576] [120/240v] [Replacement Upgrade] Spa Controls 52222-05_spa-control-electronic-complete-balboa-r574-86](http://bathparts.com/cdn/shop/products/52222-05_spa-control-electronic-complete-balboa-r574-86.jpg?v=1769976124&width=700)

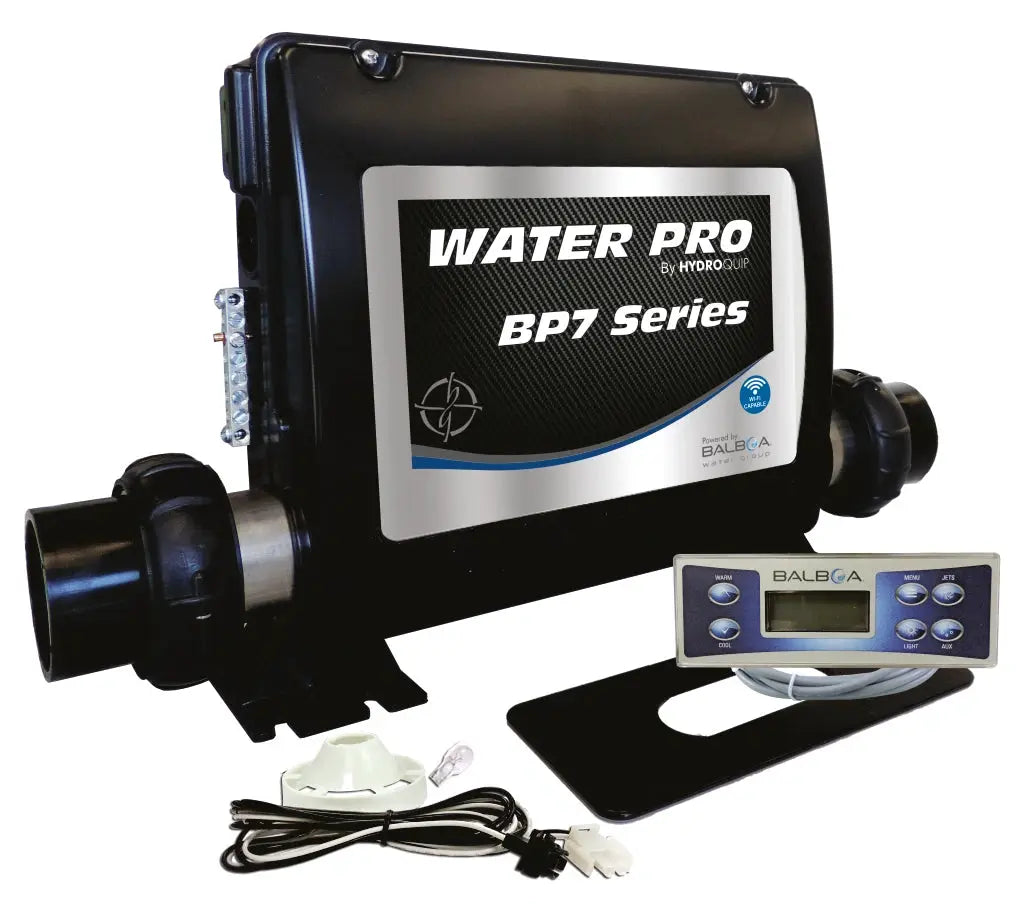

![Hydro-Quip Water Pro BP7 4.0kW Retro-fit Kit TP500 [50-BP7-500-40-K] Spa Parts: Spa Control Systems (Hydro Quip)) Water_Pro_BP7_Retro-Fit_Spa_Control_5.5kW_Fixed_Heater_TP500_Panel_50-BP7-500-55-K](http://bathparts.com/cdn/shop/files/Water_Pro_BP7_Retro-Fit_Spa_Control_5.5kW_Fixed_Heater_TP500_Panel_50-BP7-500-55-K.webp?v=1775577279&width=1016)
