EF50, EF75, EF100, EF150 Pump and filter replacement parts

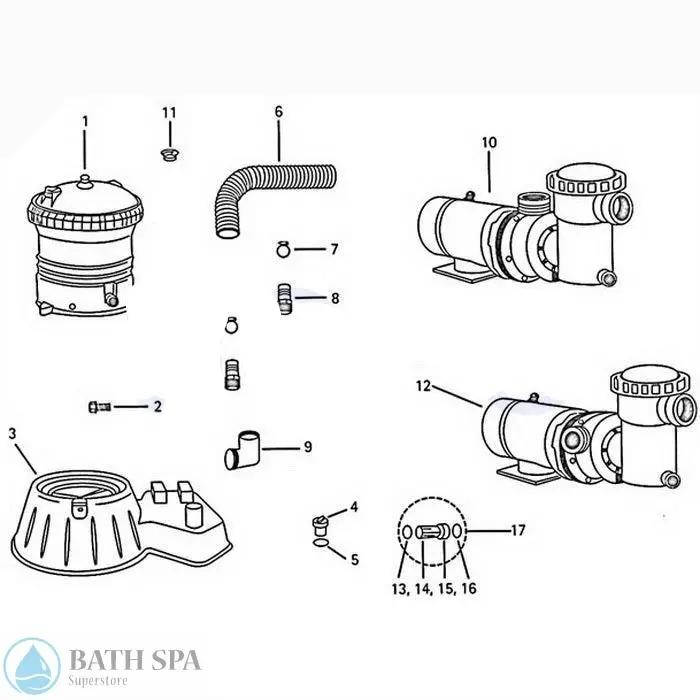

Replacement Parts for Earlier Models EF50, EF75, EF100 & EF150
|
Fig. No.
|
Part No.
|
Description
|
| 1 |
- |
EF 50 Filter |
|
- |
EF 75 Filter |
|
- |
EF 100 Filter |
|
- |
EF 150 Filter |
| 2 |
14-4340-96 |
PL Hex #12 - 14 x 3/4" |
| 3 |
12-1152-00 |
Base assy (Replaces all previous bases) |
| 4 |
14-1268-17 |
PL Hex Capscrew 1/4-20 x 1" |
| 5 |
14-0738-52 |
Washer 5/16 x 3/4 x 1/16" |
| 6 |
31-1624-07 |
Hose 1 1/2 x 24" |
| 7 |
31-0105-07 |
Hose clamp |
| 8 |
31-1053-07 |
ABS adaptor 1 1/2 male threaded (MNPT) x 1 1/2" barbed |
| 9 |
31-1062-06 |
Elbow 1 1/2" x 90 degrees PNPT x MNPT |
| 10 |
9402-7935 |
S1LR3 |
|
9402-7943 |
S15LR3 |
|
9402-7588 |
S7LR6 |
|
9402-2410 |
S1LR6 |
|
9402-7794 |
S15LR6 |
| 11 |
31-0283-27 |
Reducer Bushing 2 x 1 1/2" |
| 12 |
9402-2415 |
S1LR9-3 |
|
9402-2420 |
S15LR9-3 |
|
9402-2430 |
S1LR9-6 |
|
9402-2435 |
S15LR9-6 |
| 13 |
47-0328-00 |
O-ring 1 7/8 ID x 3/16" TK for LR9 units |
| 14 |
42-3632-00 |
Inter Connect for LR9 units |
| 15 |
14-4273-06 |
Inter Connect Nut for :R9 units |
| 16 |
47-0228-68 |
O-Ring 2 1/4D x 1/8" TK for LR9 Units |
| 17 |
42-3634-08 |
Inter Connect Assy |
**NLA = No Longer Available, OBS = Obsolete****
