Two Air Controls and One Air Button in the Center
** No Graphic Rings **
JACUZZI WHIRLPOOL
Replacement Parts 3-Position Control Panel
|
Ref. No.
|
Part No.
|
Description
|
|
1
|
9224xxx
|
Panel, 3 Position |
|
2
|

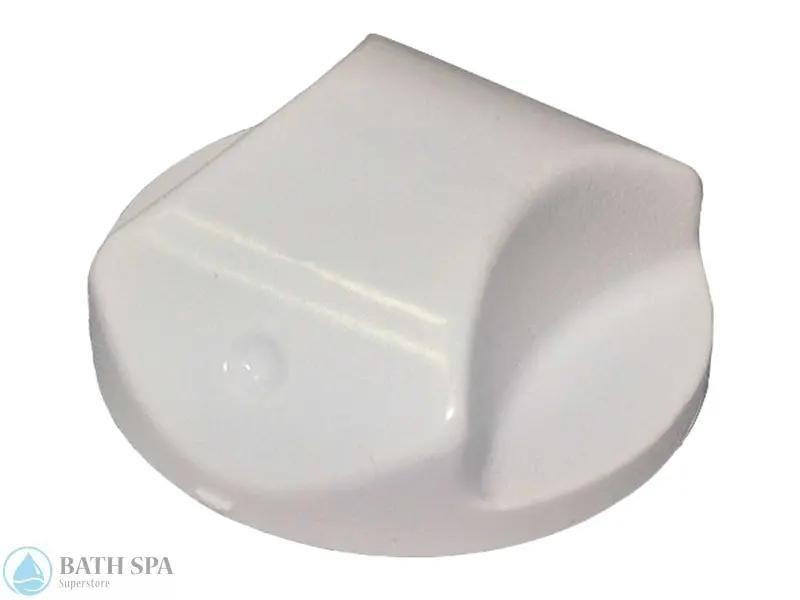

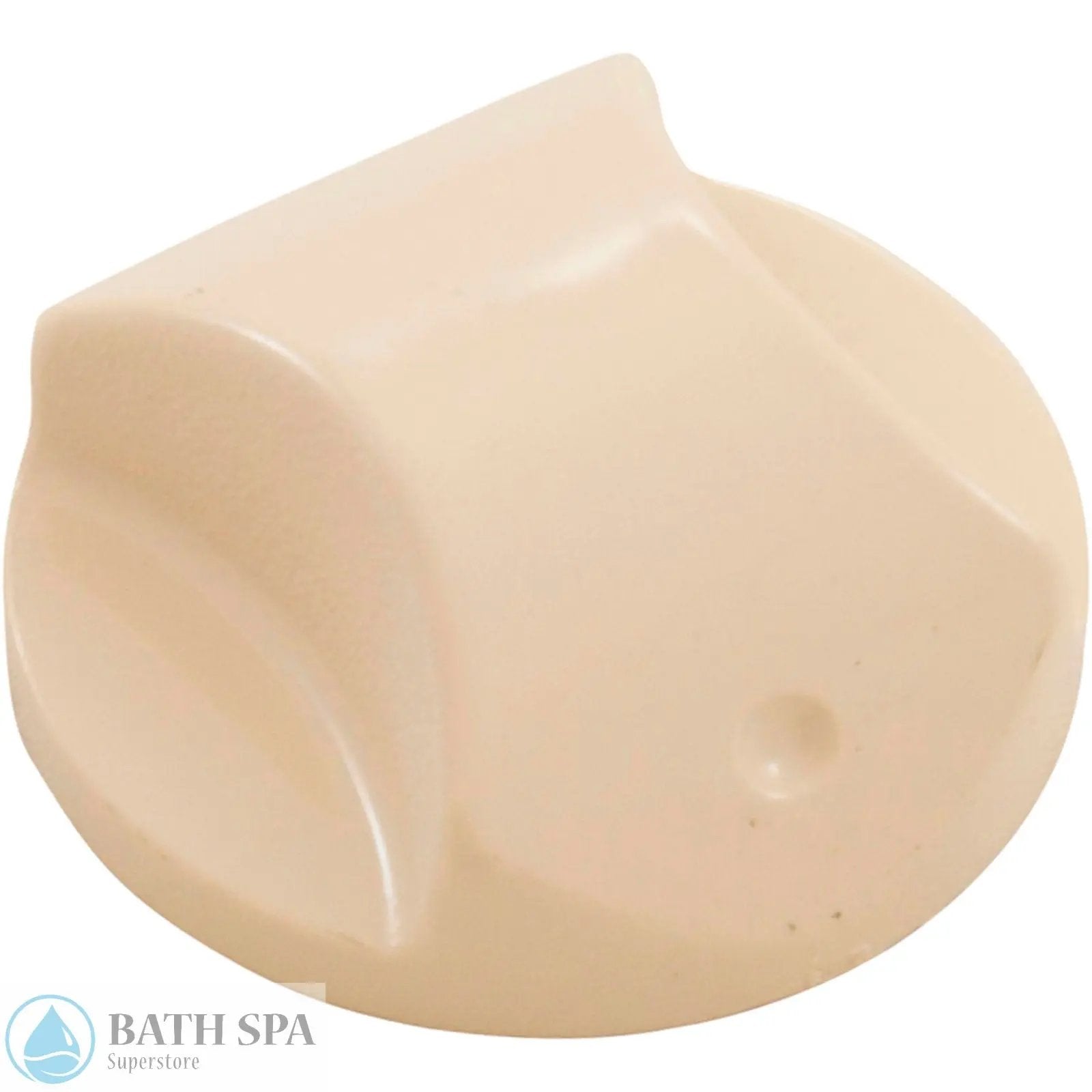

8267xxx
|
Knob, .25 shaft Assembly |
|
3
|

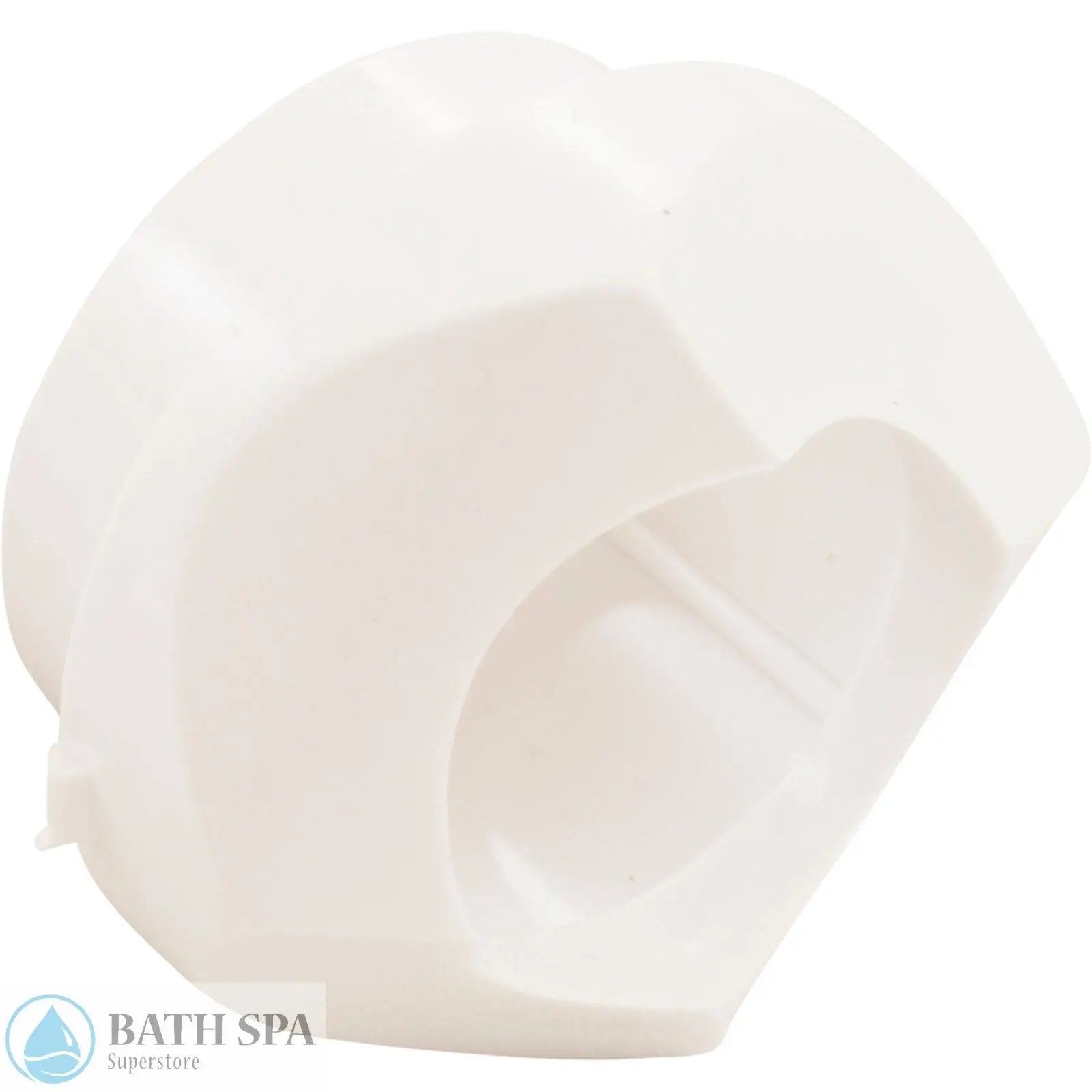

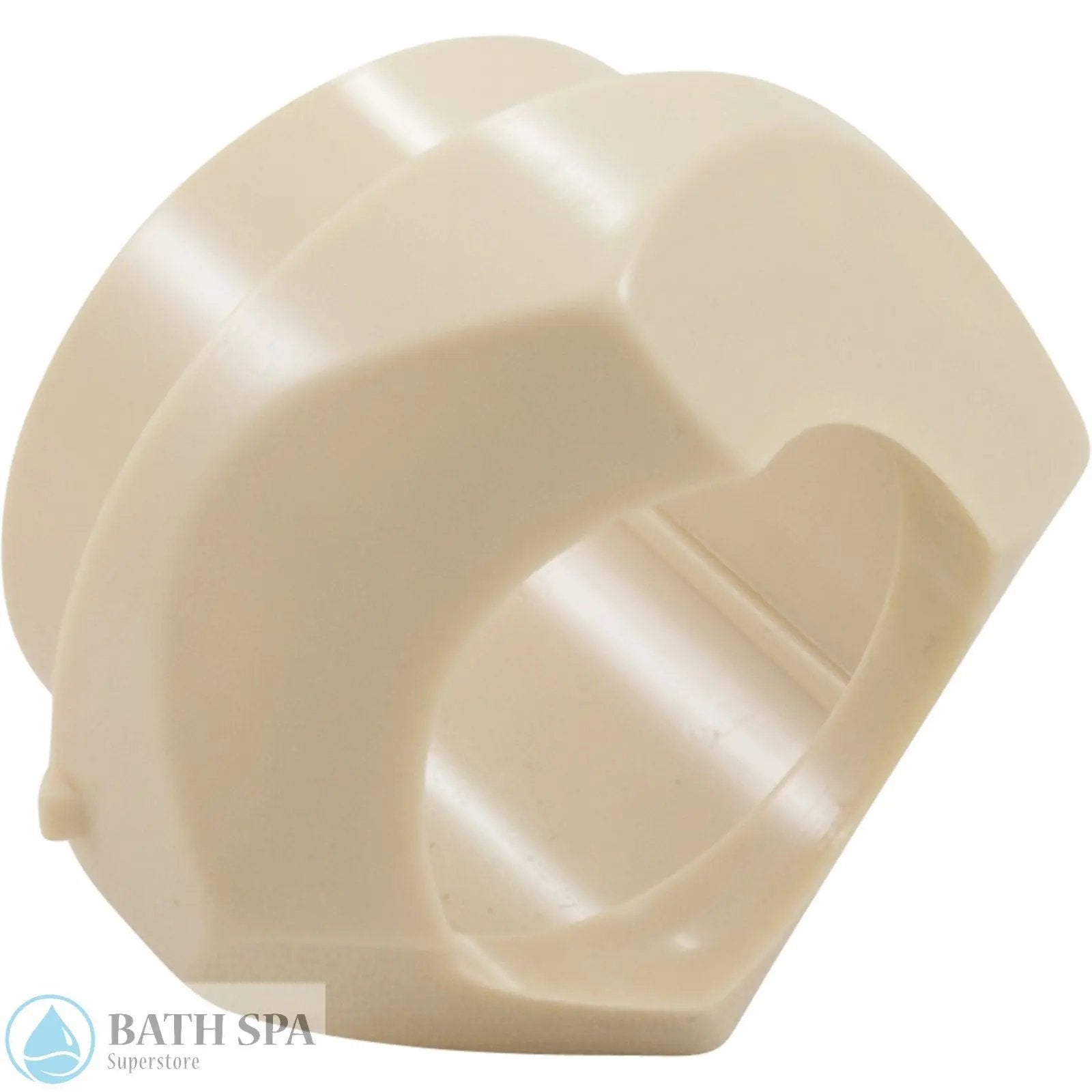

8247xxx
|
Bezel, Actuator |
|
4
|

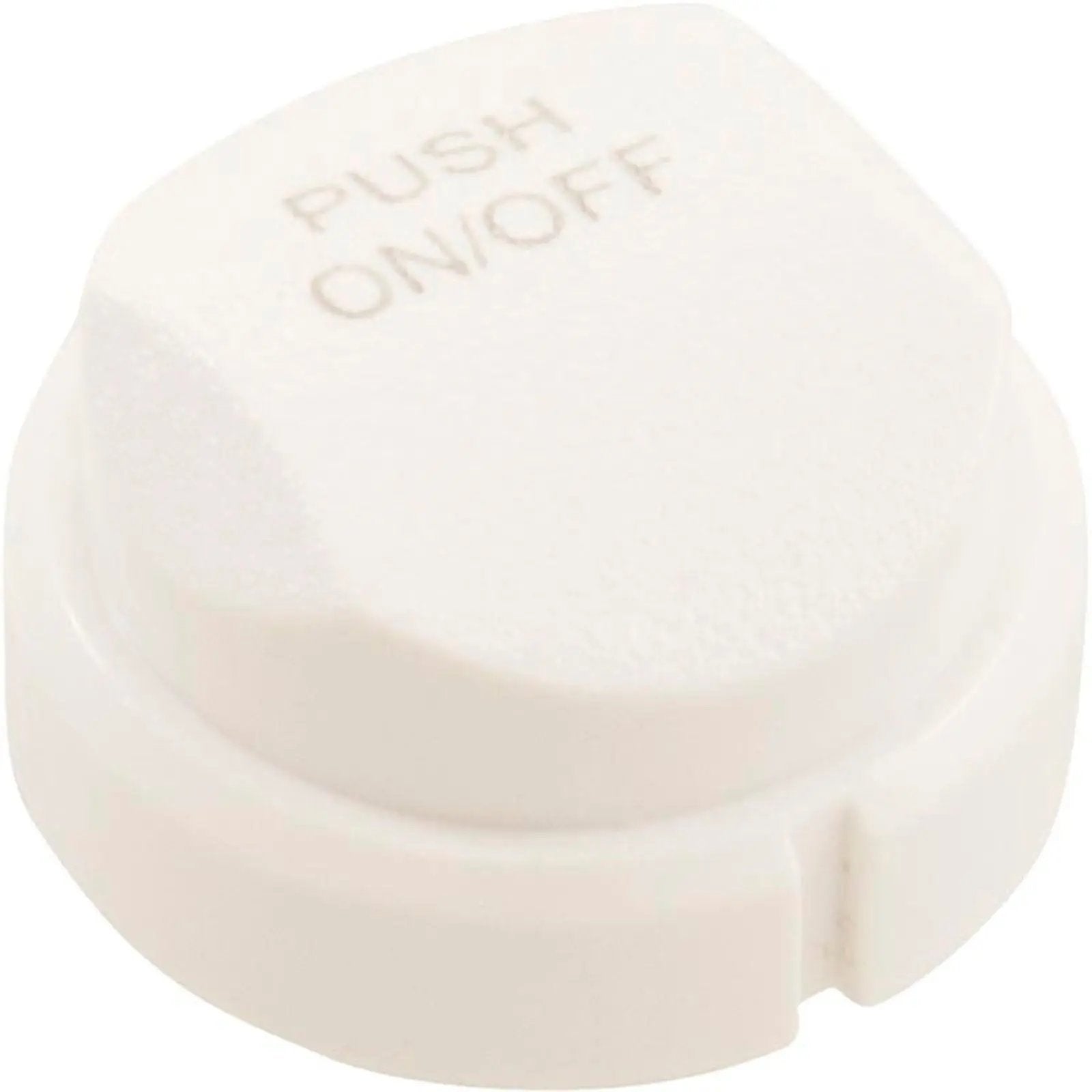

8246xxx
|

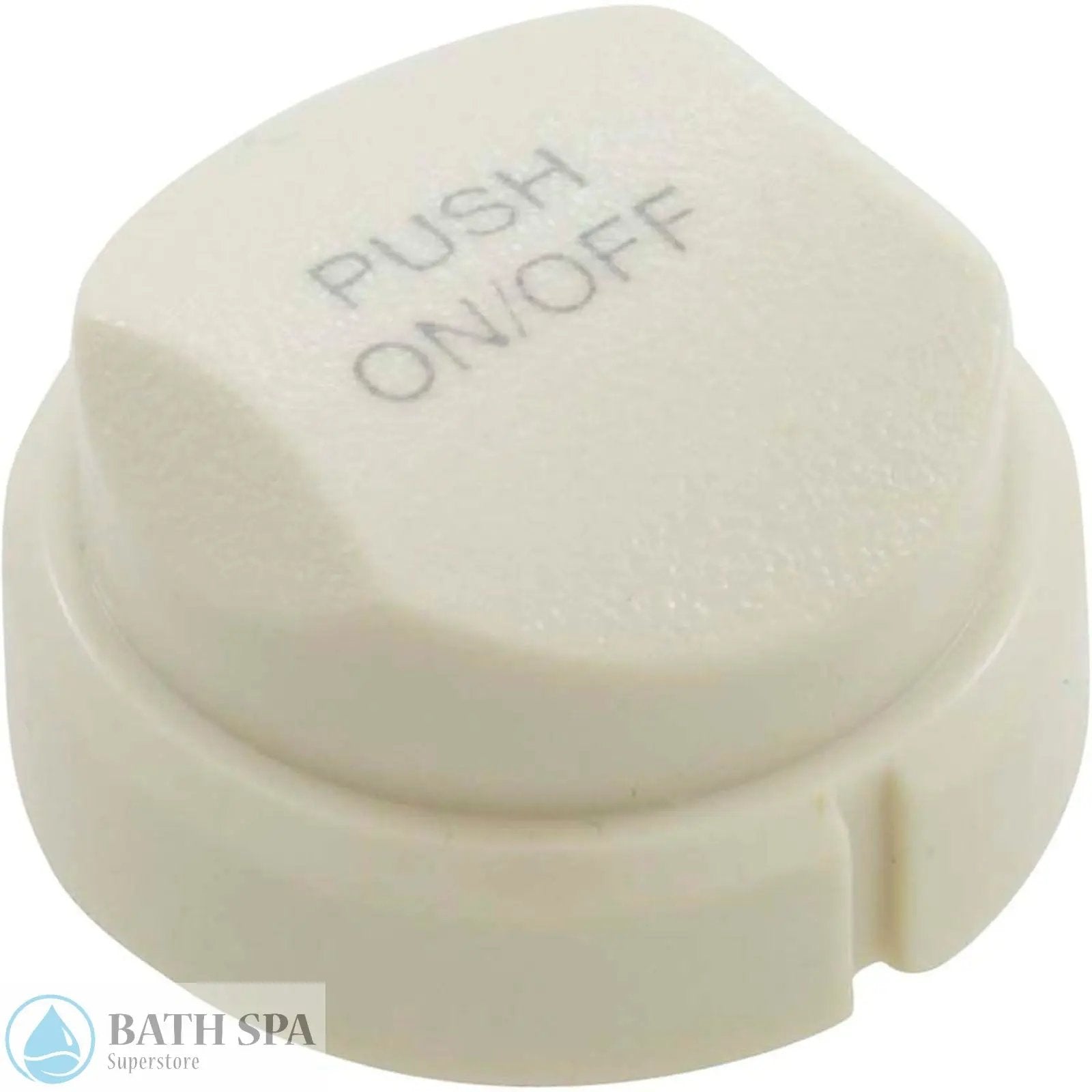

Button, Air Actuator |
|
5
|
8263000
|

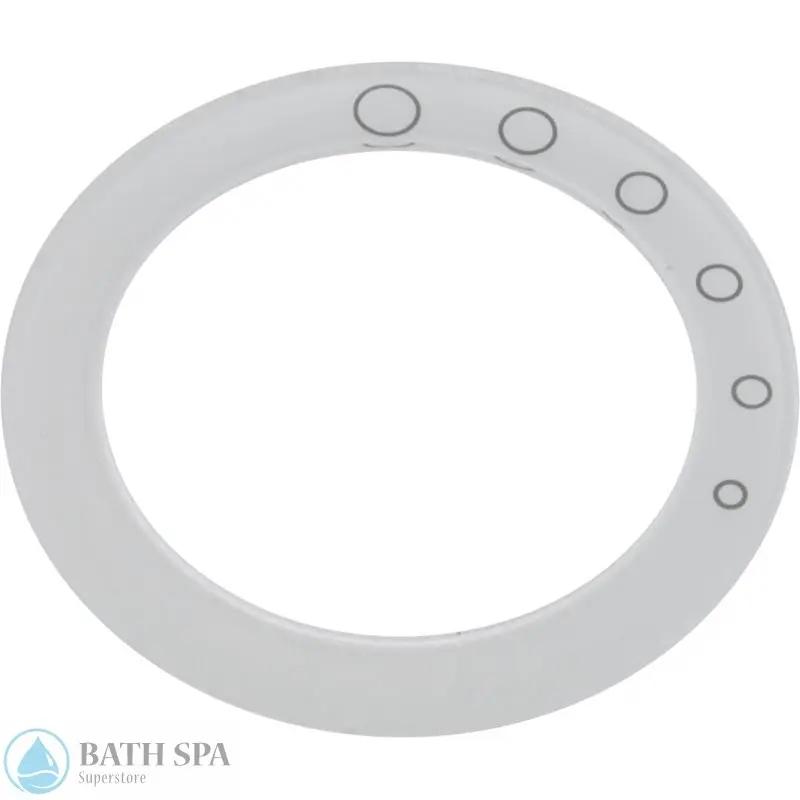

Graphic Ring, Air |
|
6
|
8262000
|

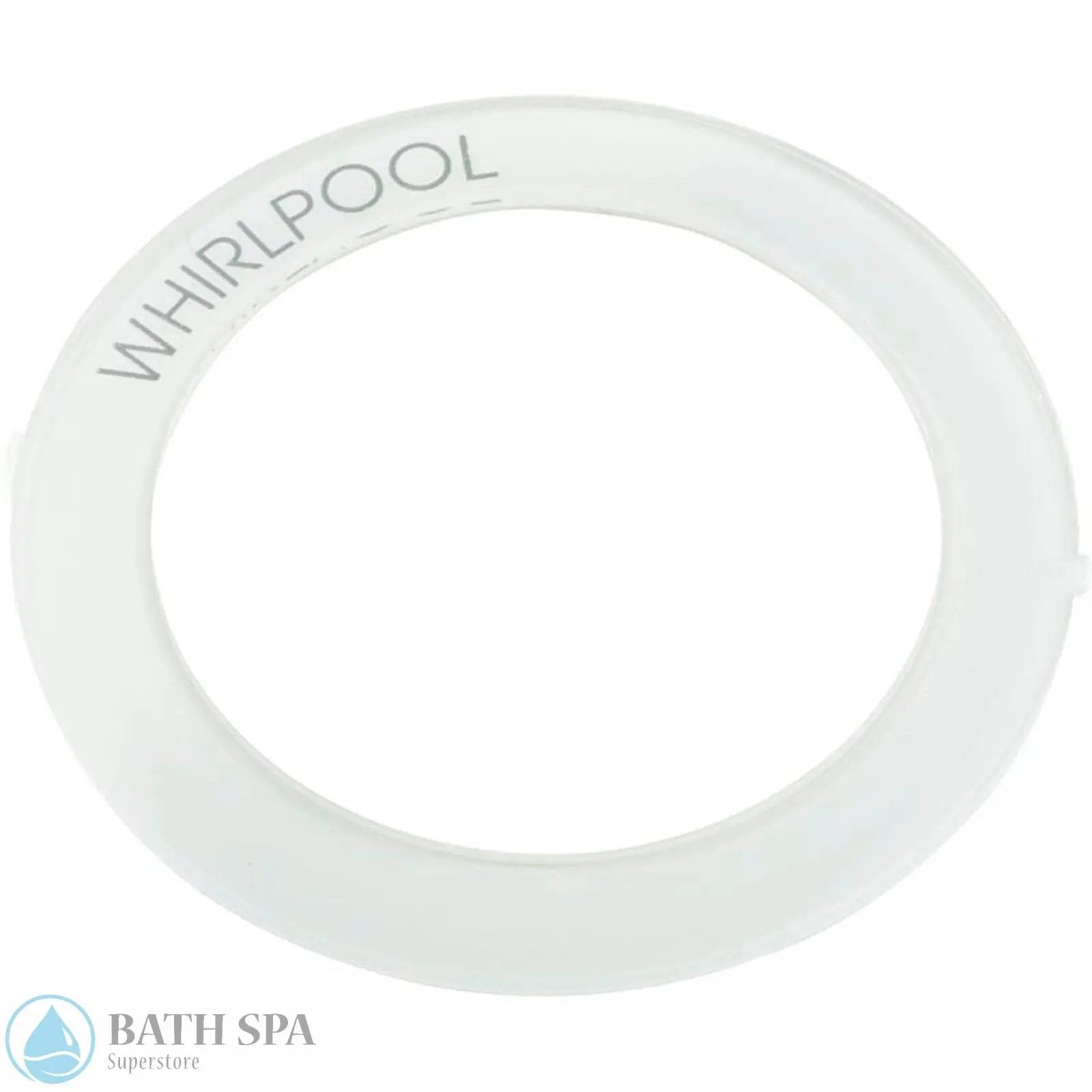

Graphic Ring, Whirlpool |
|
7
|
C842000
|

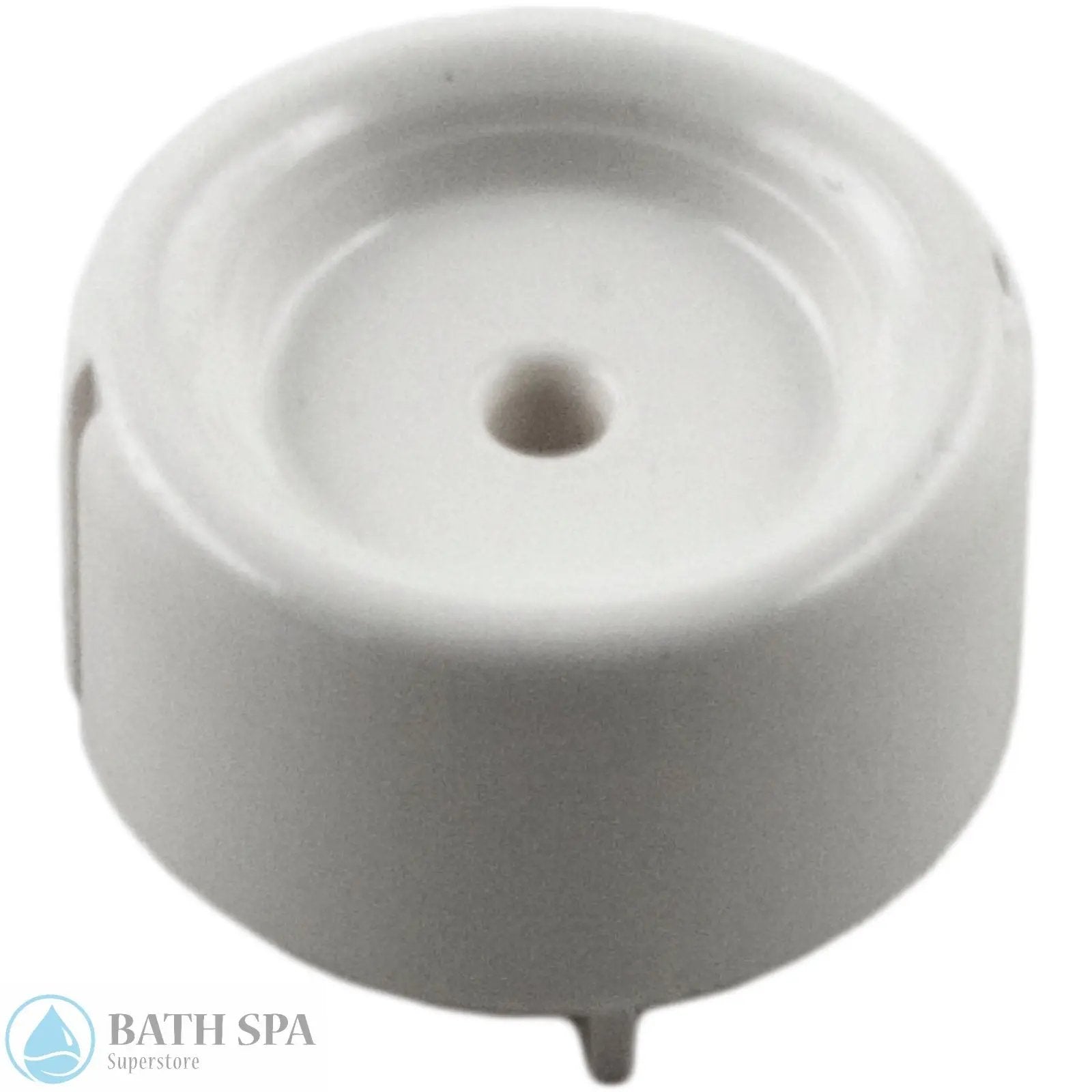

Guide, Air Actuator |
|
8
|

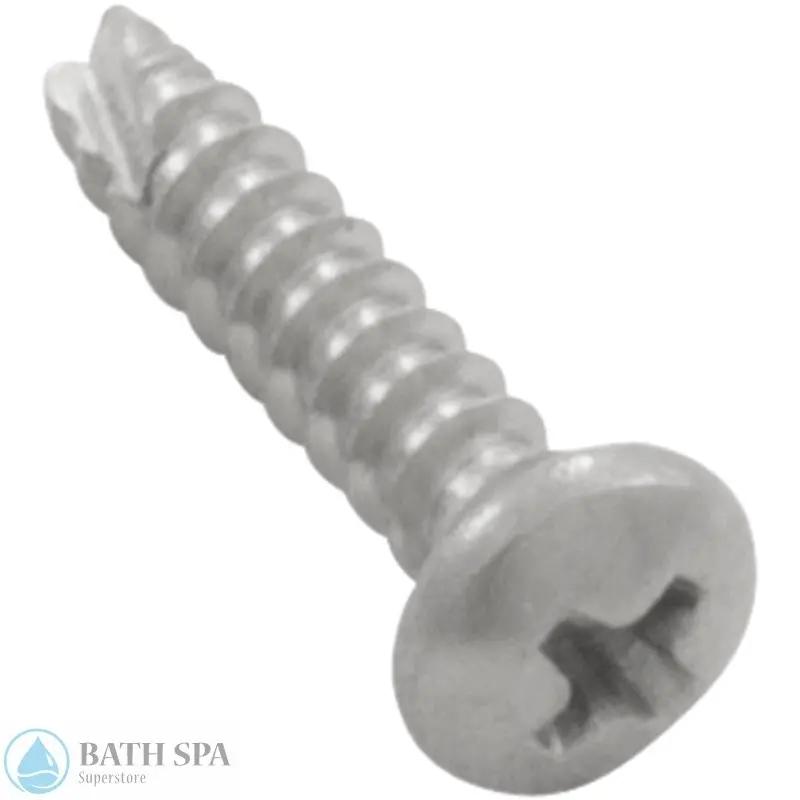

9724000
|
Screw, Thread Ctg. 4-24 x .5 Ty 25 |
|
9
|
C377000
|

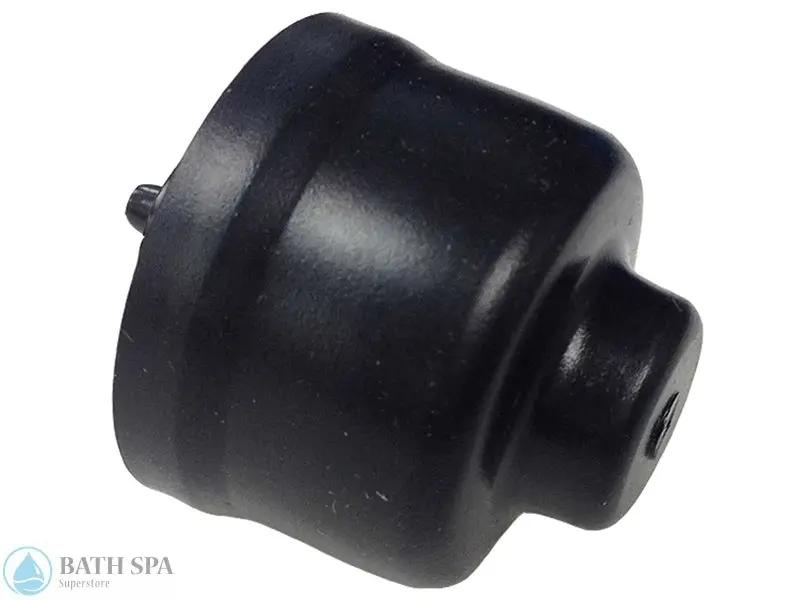

Bellows, Air Actuator |
|
10
|

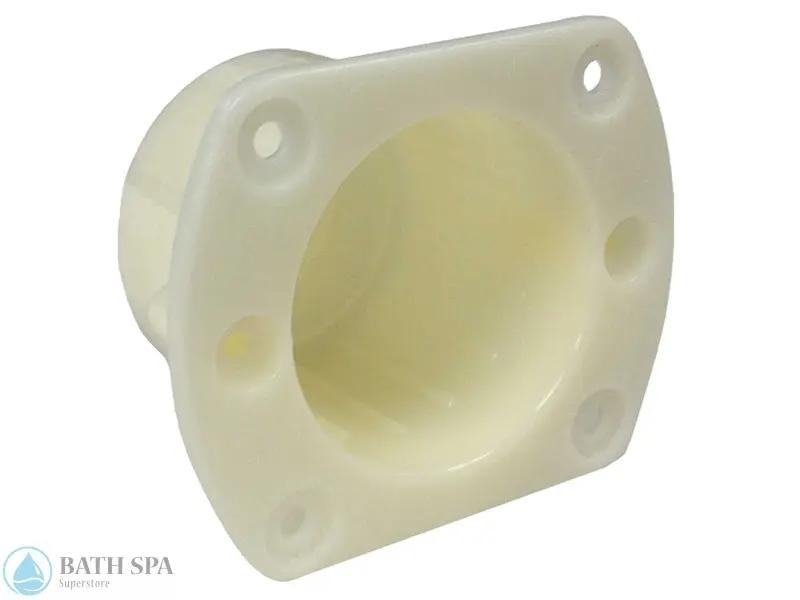

C841000
|
Cup, Air Actuator |
|
11
|
PA54000
|
Air Control Assembly (Includes item 12) |
|
|
|
|
N.S.= Not Shown, NLA = No Longer Available
xxx = Color Choice Number (914 - Almond, 940 - White)
