Lamp / Transformer / Actuator Assembly

Lamp / Transformer / Actuator Assembly

JACUZZI WHIRLPOOL

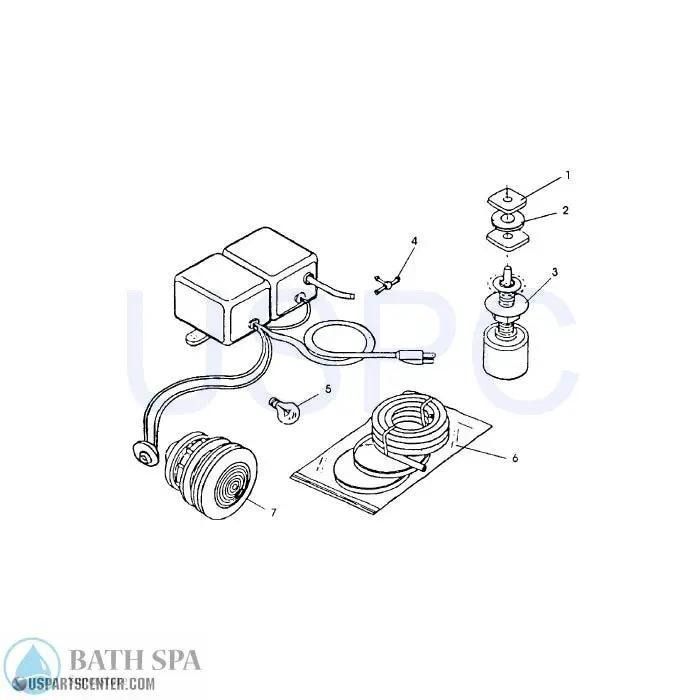

Replacement Parts for Lamp / Transformer / Actuator Assembly (Click on the link for the parts still available)

Ref. No.	Part No.	Description
1	JWB7735827	Cap Switch, Blank W/Hole, Chrome
1	JWB7735829	Cap Switch, Blank W/Hole, Bright Brass
2	JWB6829000	Adhesive, Actuator Cap
3	JWB6828000	Actuator, Switch Assembly
4	JWB7031000	Bleeder Tee
5	JWB6611000	Lamp, 12 Volt
6**	JWB6567000	Filters, Light
7	JWB8018000	Housing Assembly, Lens
N.S.	JWB8020000	Transformer, Light 13 Ft. (Used on the Aura Whirlpool Bath)
-	JWB7701000	Complete Lamp Package

** When item 6 is ordered, item 5 is included.
NOTE: Transformer cannot be ordered individually. Part Number JWB7701000 must be ordered

N.S.= Not Shown, NLA = No Longer Available
xxx = Color Choice Number (914 - Almond, 940 - White)
