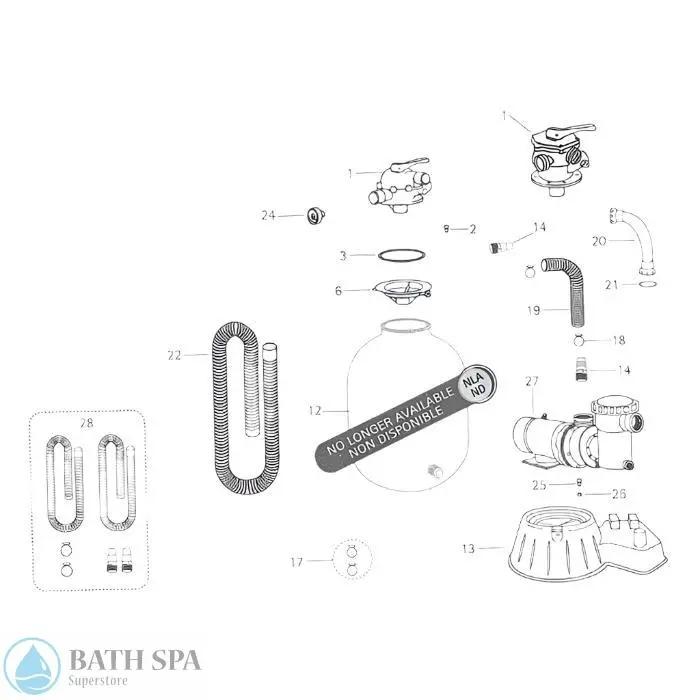

160L, 190L, 192L, 225L6 Laser Sand Filter Replacement Parts
| Ref # | Part # | Description |
| 1 | 39-2585-07 | 4-Way Dial Valve (includes 2, 3, 19) |
| - | 39-2588-00 | 6-Way Dial Valve (includes 2, 3, 19) |
| - | 39-2628-03 | DVK-7 Valve (includes 2, 3, 19) |
| 2 | 14-0743-06 | Hex capscrew 5/16" - 18 x 1" |
| 3 | 13-0378-09 | Gasket |
| 6 | 22-3639-07 | Fill spout 9869 |
| 12 | NLA | Laser 160 Tank Assy. |
| - | NLA | Laser 190 Tank Assy. |
| - | NLA | Laser 192 Tank Assy. |
| - | NLA | Laser 225 Tank Assy. |
| 13 | 12-1152-00 | Base Assy. replaced all previous bases |
| 14 | 31-1053-07 | ABS adaptor 1 1/2" male thread (MNPT) x 1 1/2" barbed |
| 15 | 31-1590-07 | ABS adaptor 1 1/2" male thread (MNPT) x 1 1/4" x 1 1/2" smooth |
| 16 | 31-1053-07 | ABS adaptor 1 1/2" male thread (MNPT) x 1 1/2" barbed |
| 17 | 31-0105-07 | 6 Foot Hose Clamps |
| 18 | 31-0024-05 | Pump to filter hose clamps (2/bag) |
| 19 | 31-1600-0535 | Hose 1.50" dia. x .35" |
| 20 | 31-1709-05 | Union Hose Assy. 25" Laser 160 (effective 09/96) |
| - | 31-1710-02 | Union Hose Assy. 25" Laser 190/192 (effective 09/96) |
| - | 31-1711-01 | Union Hose Assy. 30" Laser 225 (effective 09/96) |
| 21 | 47-0225-04 | O-Ring |
| 22 | 31-1589-00 | Hose 1 1/2" x 72" ALL HK6 Hose Kits |
| 24 | 9193-4182 | PG-60 Pressure Gauge 0-60 psi |
| 25 | 14-4020-02 | PL Hex Capscrew 1/4" - 10 x 3/4" |
| 26 | 14-0738-52 | Washer 1/4" |
| 27 | 9402-2410 | S1LR-6 |
| - | 9402-7935 | S1LR-3 |
| - | 9402-7794 | S15LR-6 |
| - | 9402-7943 | S15LR-3 |
| 28 | 42-2881-00 | 6' Hose kit (includes 2-6' Hoses, 4 Clamps, 2 Barb Adaptors) |
****NLA = No Longer Available, OBS = Obsolete****
