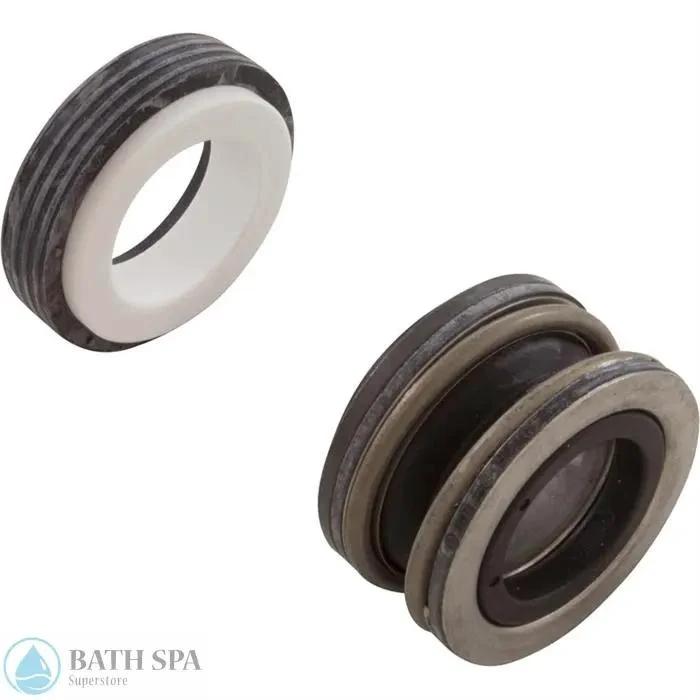

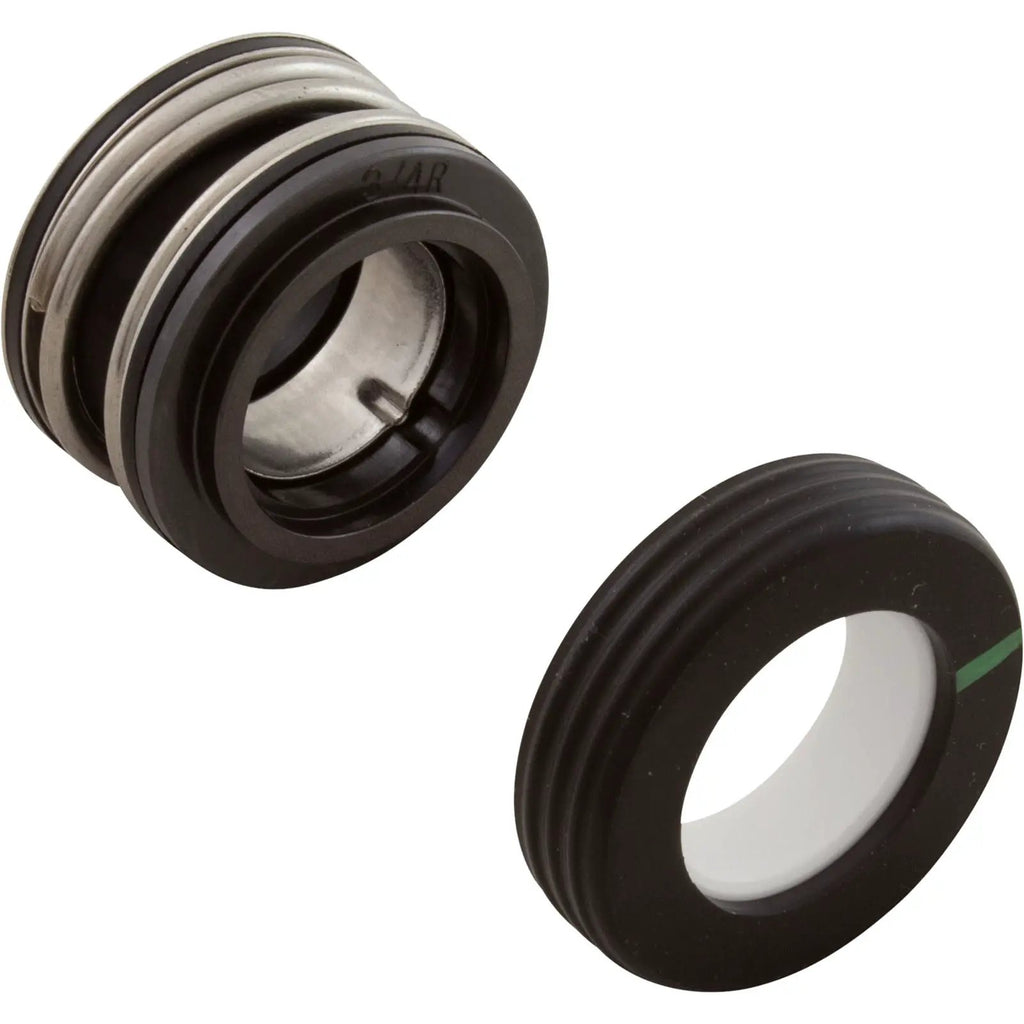

The PS-201V shaft seal from Aladdin Equipment Co. provides reliable protection for 3/4" spa pump shafts. Constructed with Viton carbon graphite, this seal combines chemical resistance with low-friction performance to withstand spa chemical cleaners and chlorinated water environments.
Key specifications:
- Shaft size: 3/4"
- Seal outside diameter: 1-11/32" (1.3438")
- Seal height: 13/16" (0.8125")
- Mating ring diameter: 1-3/8" (1.375")
- Mating ring thickness: 13/32" (0.40625")
Replaces: 1213002, 1213004, 17351-0101S, 201, 35B1109, 37400-0026S, 37400-0027, 37400-0028S, 383485, 38592-00, 40678, 40711, 5064-16, 52337033152, 5250-235, 601256, 601402123818, 601402123820, 610377745178, 622405, 632637, 788379724689, 788379787462, 788379787820, APCUS201, AS-1521, AS-201, HAY-101-2020, PS-1908, PS-201, PS-201V-CMS, PS-3868, PS-851, PS1908, PS201, PS851, R0445500, R0479400, ShftSlPR, SPX1600Z2, SPX4000SA2, U109-372, U109-372SS, U9-358SS, USS-60-5013, USSPS851B, VG-201, WMC SS-1600-Z-2 Shaft Seal Head Type D Model PS-201.
This seal is well-suited for Balboa Water Group and generic spa pump applications, including hydro massage baths and spa pumps in home and commercial pools. It delivers durable sealing performance with a straightforward installation on standard 1/4-turn or clamped pump housings, helping reduce downtime and maintenance costs while protecting pump internals.
| Shaft Seal Head Type |
D |
| Model |
PS-201 |
| Quality/Material |
Better - Viton Carbon Graphite |
| Shaft Size |
3/4" |
| Seal Outside Diameter |
1-11/32"dia |
| Seal Height |
13/16" |
| Mating Ring Diameter |
1-3/8"dia |
| Mating Ring Thickness |
13/32" |
