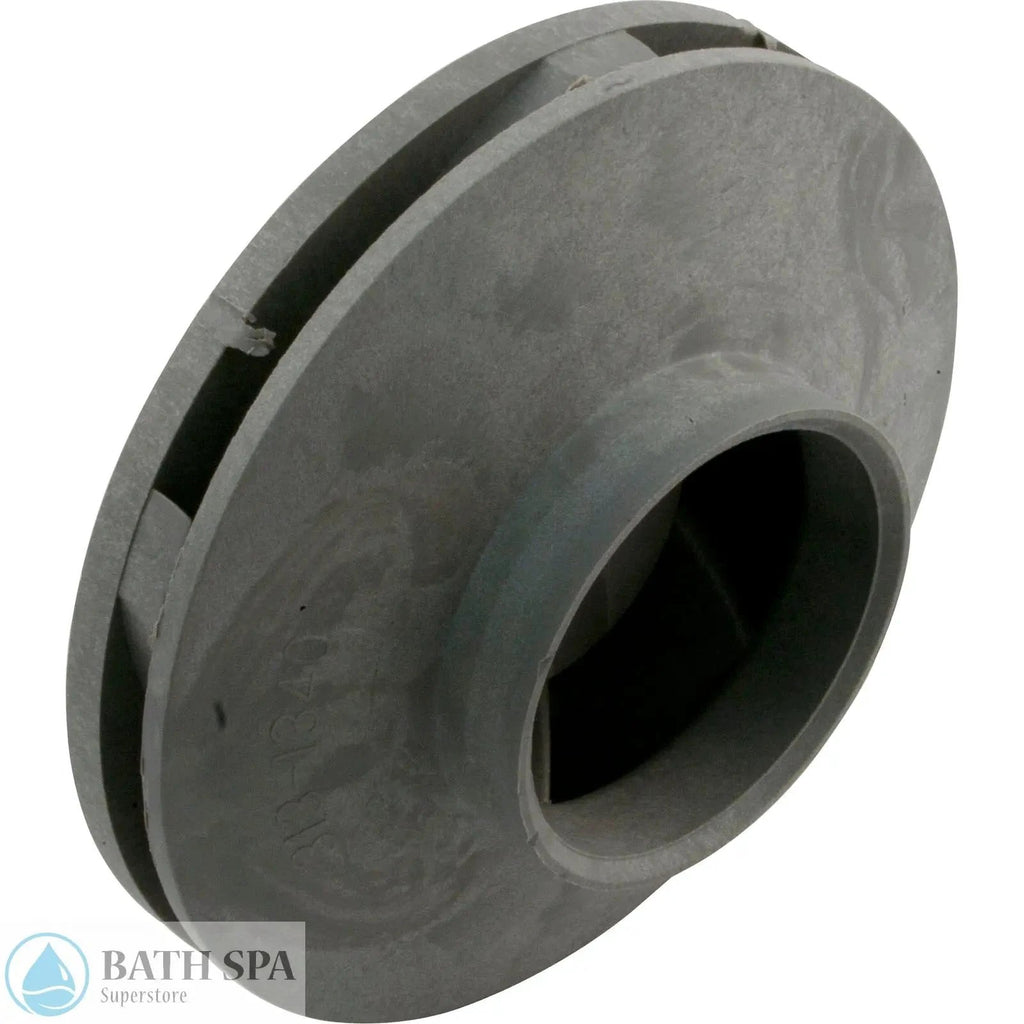

Waterway 1.0 HP SVL56E-110 Pump Impeller (310-3650)
Waterway SVL56 Pump Impeller
Closed face impeller made for the SVL56 pool pump by Waterway Plastics. Rated at 1.0hp, it is used in a Waterway SVL56 pool pump body, and must be installed on a 1.0hp (or greater) square flange motor with a threaded shaft.
Impeller Type
Closed Face
Impeller Diameter OD
4-1/2"
Vane Width ID
1/4"
Eye Diameter OD
2-1/4"
Eye Length
1/2"
Impeller Width OD
9/16"
Seal Seat Depth
7/8"
Shaft Length
n/a
Shaft Diameter OD
5/8"
Seal Seat Diameter OD
1-1/2"
Manufacturer
Waterway
Pump Application
SVL56 High Flow
WHY USE WATERWAY PRODUCTS?
At Waterway Plastics, a commitment to design, innovation and quality American made products makes for a solid combination of style and dependability. All Products are designed and manufactured in America. Waterway has been a leading manufacturer of pool and hot tub/spa and Whirlpool Bath equipment for the USA and international markets since 1973. Located in Oxnard, California in 450,000 square feet of manufacturing and warehousing facility, Waterway is one of the largest employers in Ventura County. Waterway is recognized as an innovator of quality products with an extensive line of jets, pumps, filters, filter systems and white goods for in-ground and above ground pools, spas and bath
