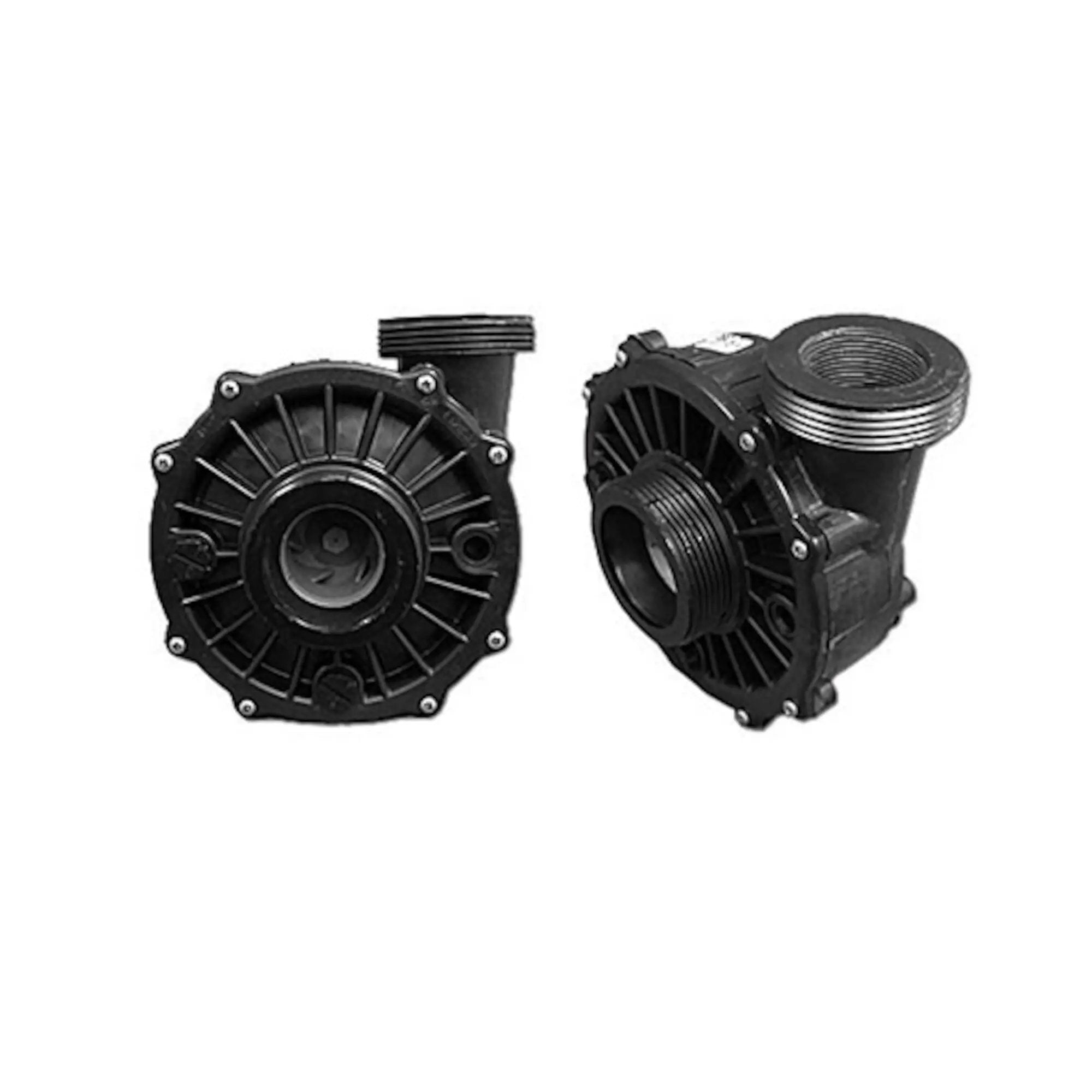

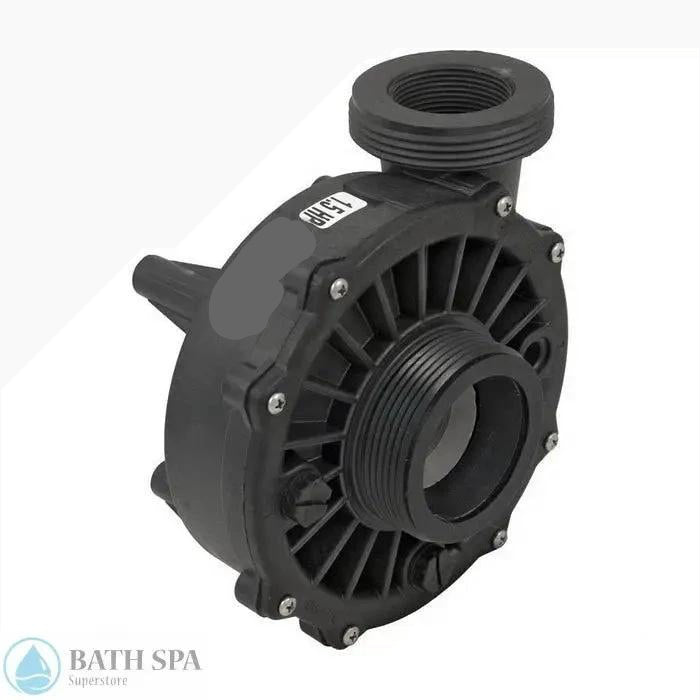

Waterway 1.5 HP Hi-Flo Spa Pump Side Discharge Wet End [2"] [48FR] (310-1140SD)
Side discharge, 2"mbt suction/discharge, 48 frame wet end for the Waterway Hi-Flo pump. This wet end is used with a 1.5hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws
| Manufacturer |
Waterway |
| Pump Model |
Hi-Flo Old Style |
| Motor Frame |
48 Frame Thru-Bolt |
| Drain Plug Location |
3,6,9 o`clock |
| Suction Style |
Center |
| Suction Connection Type |
Male Buttress Thread (mbt) |
| Suction Pipe Size |
2" |
| Discharge Style |
Side |
| Discharge Connection Type |
Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Discharge Pipe Size |
2" |
| Horsepower |
1.5hp |
| Volute Fastening Type |
8 Screws |
