Waterco HydroStorm 1.5 HP Impeller (WC6340142)

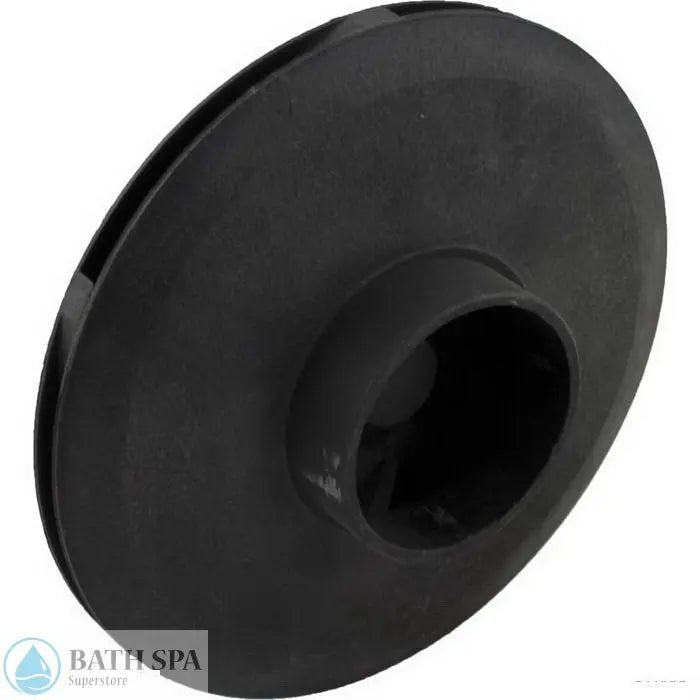

Waterco HydroStorm Pump Impeller
Closed face impeller made for the HydroStorm/HydroStorm Plus pool pump by Waterco. Rated at 1.5hp, it is used in a HydroStorm/HydroStorm Plus pool pump body, and must be installed on a 1.5hp (or greater) C-face motor with a threaded shaft. Shaft seal sold separately - PS-601
This impeller is equivalent to the JHP 1.5 Hp and the JHPU 2.0.
| Impeller Type |
Closed Face |
| Impeller Diameter OD |
5-1/4" |
| Vane Width ID |
3/16" |
| Eye Diameter OD |
2" |
| Eye Length |
11/16" |
| Impeller Width OD |
5/16" |
| Seal Seat Depth |
1/2" |
| Shaft Length |
7/8" |
| Shaft Diameter OD |
3/4" |
| Seal Seat Diameter OD |
1-5/8" |
| Manufacturer |
Waterco |
| Pump Application |
HydroStorm |
