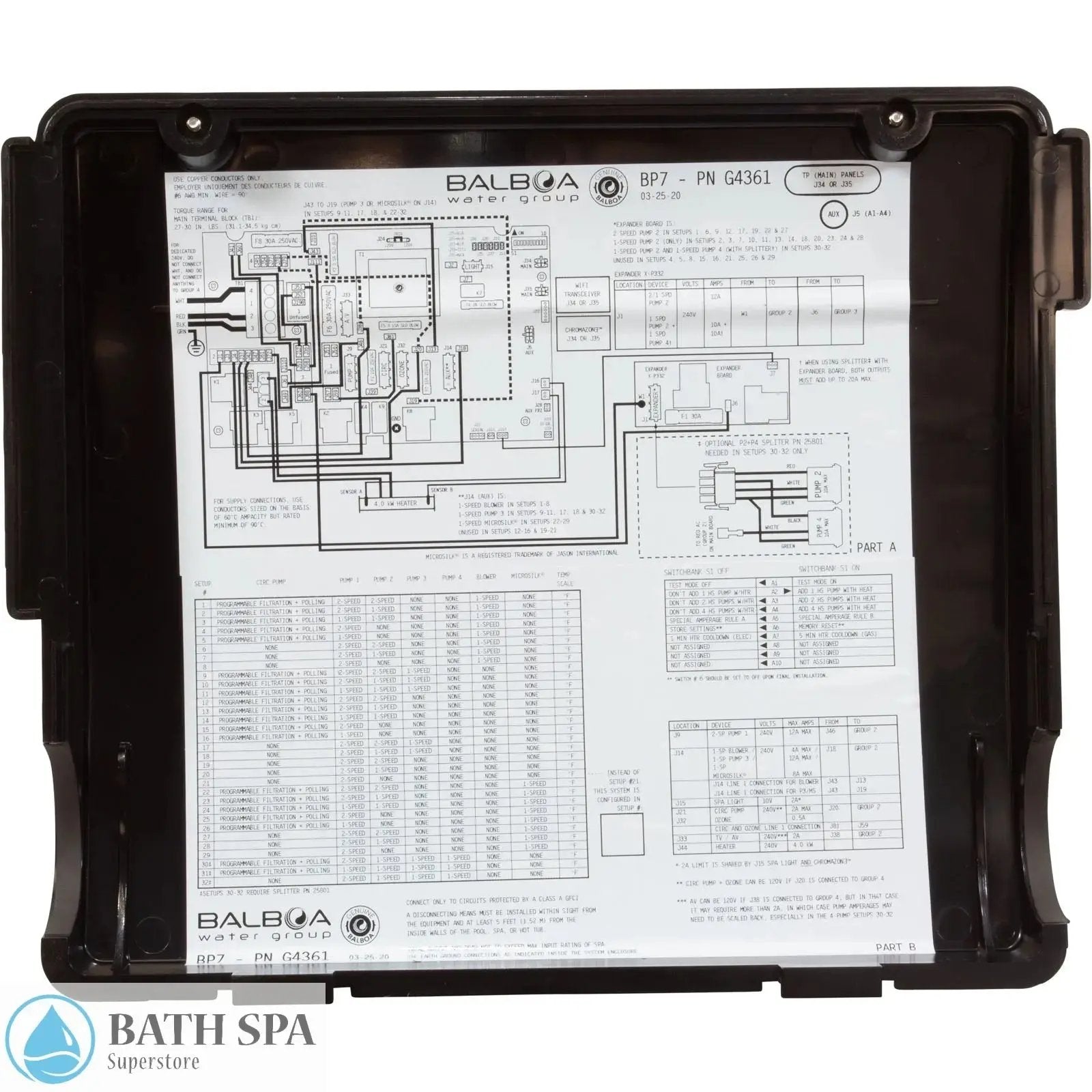

Infinity Spas INF110 Control System by Balboa, 54587 with topside
Balboa Water Group VS510SZ Control SystemSystem (and any replacement board) is typically shipped in Setup 21
Balboa Water Group BP7 Control System
Kit includes: system, panel, panel adapter plate, light cord and overlay(s)
| Topside Dimensions |
| 7 3/8 " wide x 3 1/4" tall |
- The BP family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform.
- The systems have a plastic enclosure to eliminate water intrusion.
- Connectors are built onto the circuit board minimizing wires and simplifying service.
- The different models have controls for a single two-speed pump or an additional blower or pump.
- All models feature a convertible 115/230v power supply, a 1.4/4.0kW heater and can support mini, duplex, or standard digital control panels.
Control Box Dimensions
| Height |
Width |
Depth |
| 10-9/16" |
12-1/4" |
4-1/2" |
| Number Of Appliances |
3 |
| Manufacturer |
Balboa Water Group |
| Model |
BP7 |
| Supply Voltage |
230v - 3 Wire, 230v - 4 Wire |
| Heater Type |
Fixed - Bottom |
| Heater Wattage |
4.0kW |
| Topside Included |
TP600 |
| Circ Pump Ready |
Optional 115v/230v |
| Auxiliary Topside Ready |
Yes |
| Fiber Optic |
No |
| Accessory Ready |
Yes |
| Wi-Fi Compatible |
Yes |
| 50/60 HZ |
50Hz, 60Hz |
