Pinnacle High Flow Pump Replacement Parts

36 products

Showing 1 - 24 of 36 products

Exploded View

Item No.	Part No.	Description
1	075232	1/2 hp F, 3/4 hp UR, std., sq. flg. Almond
1	075233	3/4 hp F, 1 hp UR, std., sq. flg. Almond
1	075234	1 hp F, 1 1/2 hp UR, std., sq. flg. Almond
1	075235	2 hp F, 2 1/2A, 230 only, 32 lbs. Almond
1	355339	3/4F, 1A std. sq. flg. - 115/230, 25 lbs. Black
1	355340	1F, 1 1/2A std. sq. flg. - 115/230, 28 lbs. Black
1	355342	1 1/2F, 2A std. sq. flg. - 230 only, 32 lbs. Black
1	355371	1/2F, 3/4A std. sq. flg. - 115/230, 25 lbs. Black
1	356438	3/4 std. 48 frame thru-bolt 115 only Black, Used on pumps built after 11/1/94.
1	356439	1 std. 48 frame thru-bolt 115 only Black, Used on pumps built after 11/1/94.
1	356440	1 1/2 hp, 48 frame Thru-Bolt 115/230, 23 LBS. Black, Used on pumps built after 11/1/94.
1	356813	1F, 1 1/2A power end Almond
1	356814	3/4F, 1A power end Almond
1	356815	1/2F, 3/4A power end Almond
2	354290	Screw - 3/8 in.- 16 hex hd., 4 req. Used on pumps built after 11/1/94.
3	355666	Seal bracket thru-bolt Black, Used on pumps built after 11/1/94.
3A	356012	Seal plate, almond

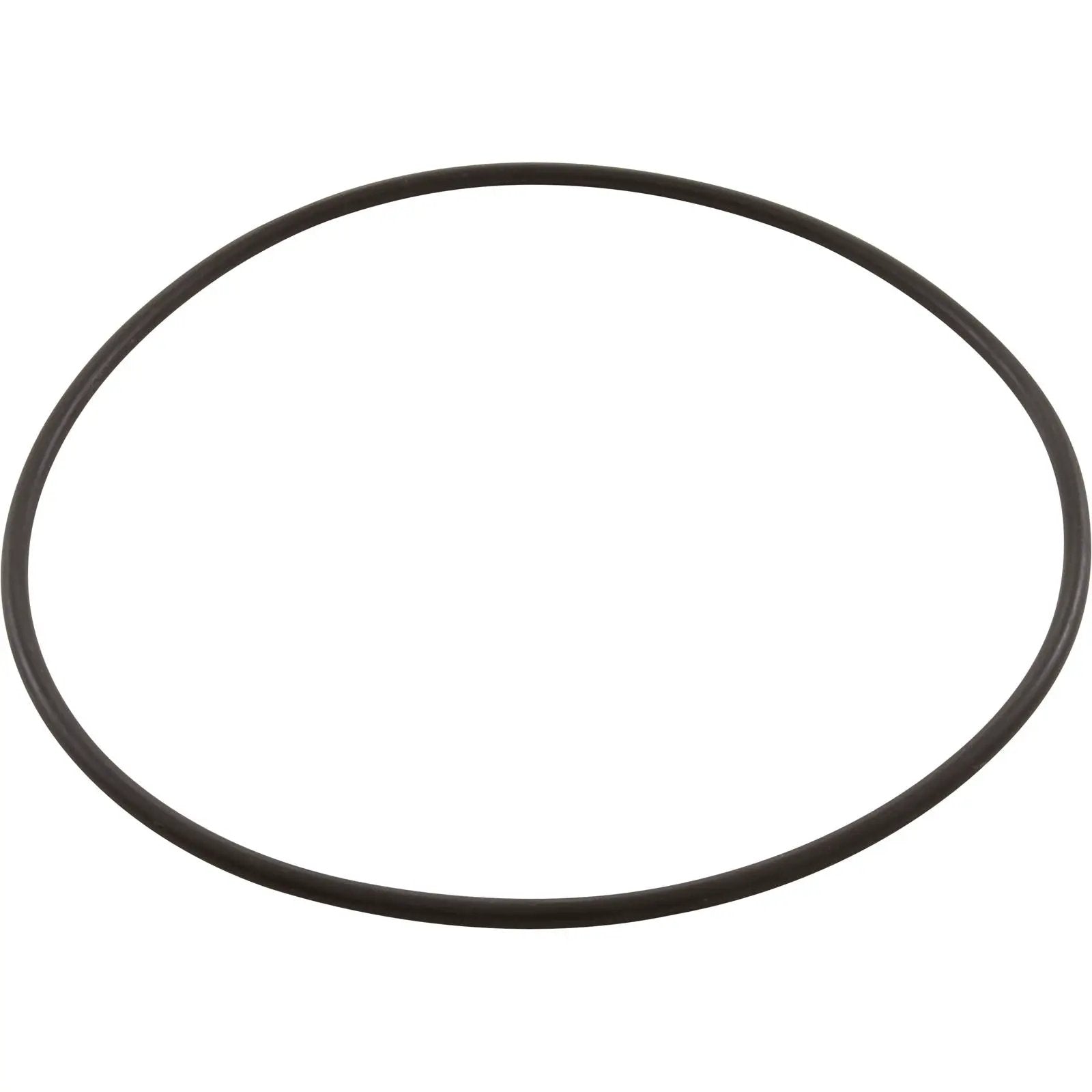

4	355619	O-ring valve adptr., 1/8 in. x 8 1/4 in. i.d.
5	355385	Adapter - 5 -5/8 in. dia. motor
6	355613	Pump base
7	354545	Seal - 5/8 in. mechanical PS 200
8	355258	Impeller 3/4A
8	355263	Impeller 1A
8	355278	Impeller 1 1/2A
8	355225	Impeller 2A
8A	355043	Impeller 1/2F, 3/4A Used on pumps built after 11/1/94.
8A	355067	Impeller 3/4F, 1A Used on pumps built after 11/1/94.
8A	355074	Impeller - 1F, 1 1/2A Used on pumps built after 11/1/94.
9	355389	Screw - impeller locking
10	355617	Diffuser - 1/2F, 3/4A and 3/4F, 1A Used on pumps built after 11/1/94.
10	355618	Diffuser - 1F, 1 1/2A Pinnacle Used on pumps built after 11/1/94.
11	355334	Screw - #8 - 32 hex wsh. hd., 3 req.

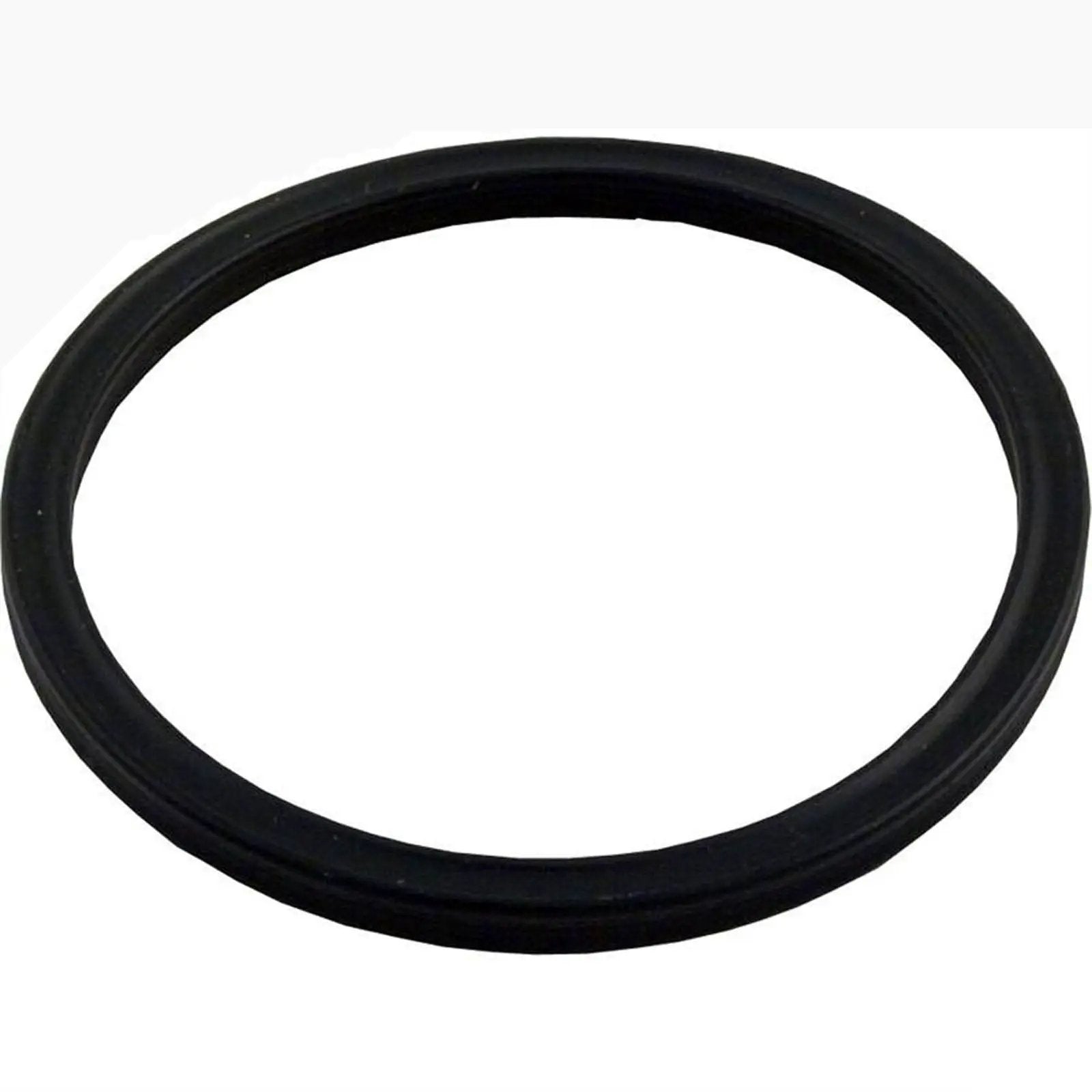

12	355030	O-ring - diffuser
13	354112	Lid - strainer pot, chemical resistant
13	355301	Lid - strainer pot
14	350013	O-ring - lid
15	355667	Basket
16	356011	Pump housing, almond
17	072184	Washer, flat, 3/8 in.
18	355621	Screw - 3/4 - 16 x 2 1/4 hex hd., 4 req.
19	192115	O-ring drain plug 1/16 in. x 1/2 in. i.d.
20	154699	Plug 1/4 in. NPT drain
Power Ends Include Items 1-4, and 7-12
-	356813	1F, 1-1/2A Power end, almond
-	356814	3/4f, 1A power end, almond
-	356815	1/2F, 3/4A power end, almond
