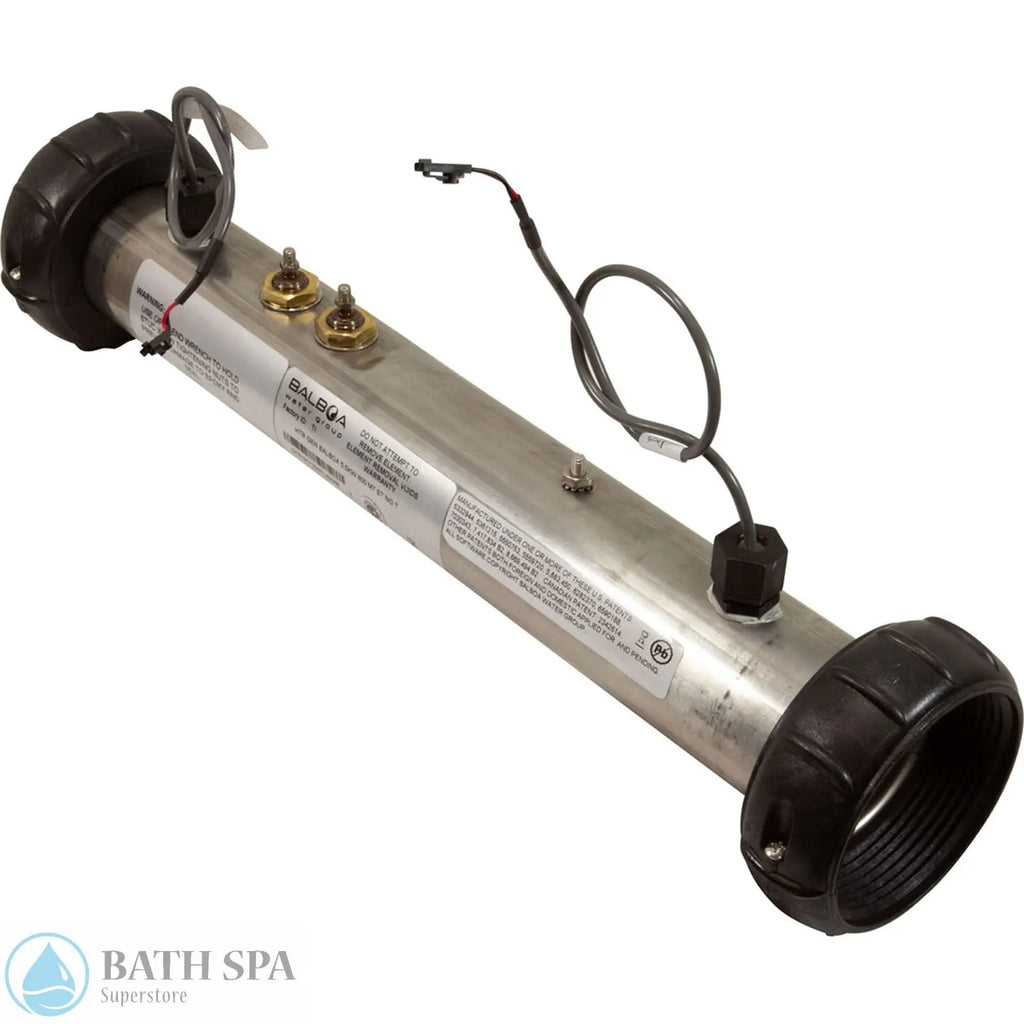

Balboa Flo-Thru Hearer, 5.5kw SUV/LE/Value/M7 M7 2 x 15 (58010)

Balboa Value M7 and Balboa LE M7 control systems.

Housing Configuration	Straight
Heater Length	15"
Lead End Terminal Location	4-1/4"
Threaded Tap Orientation	None
Threaded Tap Location	13" From Leading End, 2" From Leading End
Kilowatts	1.375kW, 5.5kW
Voltage	115v, 230v
Sensor Stud Orientation	None
Mounting Stud Type	None
Heater Size	2"
Heater Application	Balboa Water Group
Special Features	M7 Sensors



Heater Type -Flow Thru

Heater Style -Drop In Replacement

Wattage -5.5kW,Voltage -230V

Heater Dimensions -2" x 15" long

Heater Feature -Includes M7 Sensors, Gaskets- Does not include Tail Pieces
- M7 replacement heaters DO NOT come with tail pieces.
- All M7 heaters WILL NOT come with gaskets and installed sensors.

Used On Balboa Control Systems

*SERVICE MESSAGE*
FOR M7 REPLACEMENT HEATERS
- TO ENSURE THAT CONNECTIONS ARE PROPERLY TORQUED, ALL M7 HEATERS WILL HAVE THE POWER CABLE INSTALLED AT OUR FACTORY.
Warranty Note-
*Removing the Plug N’Click or eyelet cable will VOID the Balboa Warranty
