AO Smith Century C Face 1 HP Pool Motor 56J 115 230V Single Phase Threaded Shaft

Meet the A.O. Smith / Century C-Face 1.0 HP motor, a purpose-built replacement designed for pool pumps that demand reliability and easy installation. Built to fit standard 56J frames with a threaded shaft, this unit is the practical choice when you need a quick, durable drop-in replacement for your aging pool motor. Model B654 combines trusted engineering with modern versatility, making it a go-to option for outdoor pool systems.

Key features and specs

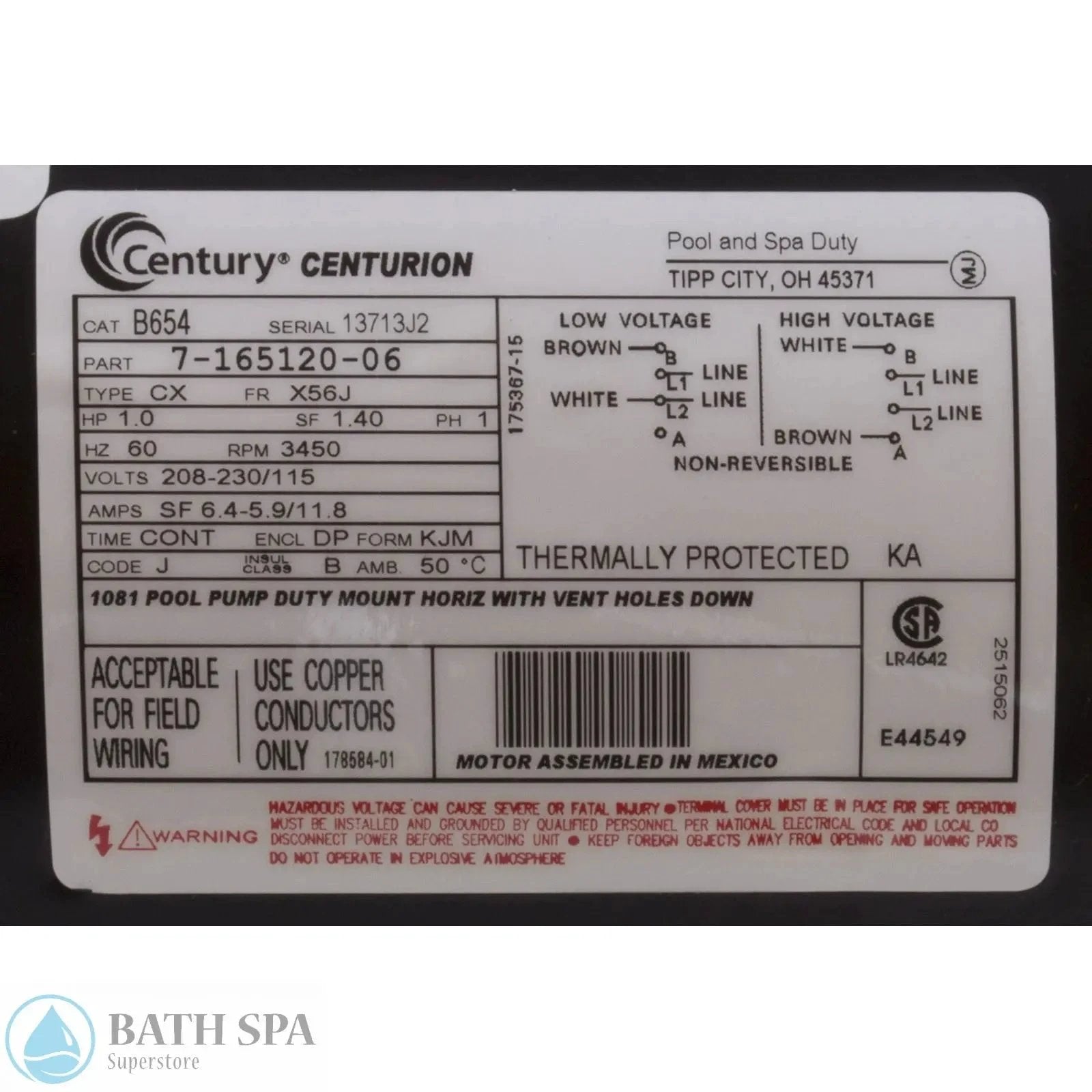

• Motor type and compatibility: Single-phase, 115/230V, 1-speed, 56J frame, C-Face mounting, threaded shaft (Thd).
• Power and performance: Nominal 1.0 HP with a total horsepower rating of 1.4 THP for brief surges in demand.
• Current requirements: Amperage around 11.8 A at 115V; 6.4 A (typical) to 5.9 A at 230V, providing flexibility across installations.
• Capacitor placement: Top-mounted capacitor supports reliable starting and smooth operation through varying conditions.
• Brand heritage: Engineered by A.O. Smith in collaboration with Century/Regal Beloit, delivering durable construction and long-term availability of parts.
• Mounting and frame: 56J frame with C-Face mounting ensures straightforward installation and compatibility with a wide range of pool pumps.

Why this motor is a smart pool-side choice

This motor excels as a practical, enduring replacement for common 56J-frame pool pumps. Its single-speed design is ideal for straightforward, maintenance-friendly operation, letting you keep your pool circulating reliably through the season. The dual voltage capability (115V or 230V) means you can adapt to existing electrical setups without swapping equipment, reducing downtime and wiring complexity.

Who benefits most

• Homeowners performing DIY pool pump replacements thanks to a familiar 56J, C-Face footprint.
• Pool maintenance technicians needing a trusted, widely compatible motor with readily available parts.
• Anyone upgrading from an aging motor who wants a proven, durable unit from a respected brand family.

Practical notes and installation considerations

• Verify your pump requires a 56J frame and threaded shaft for a seamless fit.
• Check voltage compatibility (115V or 230V) and wire connections to match your electrical supply.
• The top-mounted capacitor design supports reliable starts, which helps protect the pump and electrical system during startup spikes.
• Keep factory wiring diagrams and safety guidelines on hand to ensure code-compliant installation and operation.

For pool owners and service professionals seeking a dependable, easy-to-service motor with broad compatibility, the A.O. Smith [Century] C-Face 1.0 HP Motor [1-S] [Thd] [56J] [115/230V] (B654) stands out as a thoughtful, long-lasting choice that keeps your water circulating with confidence season after season.
