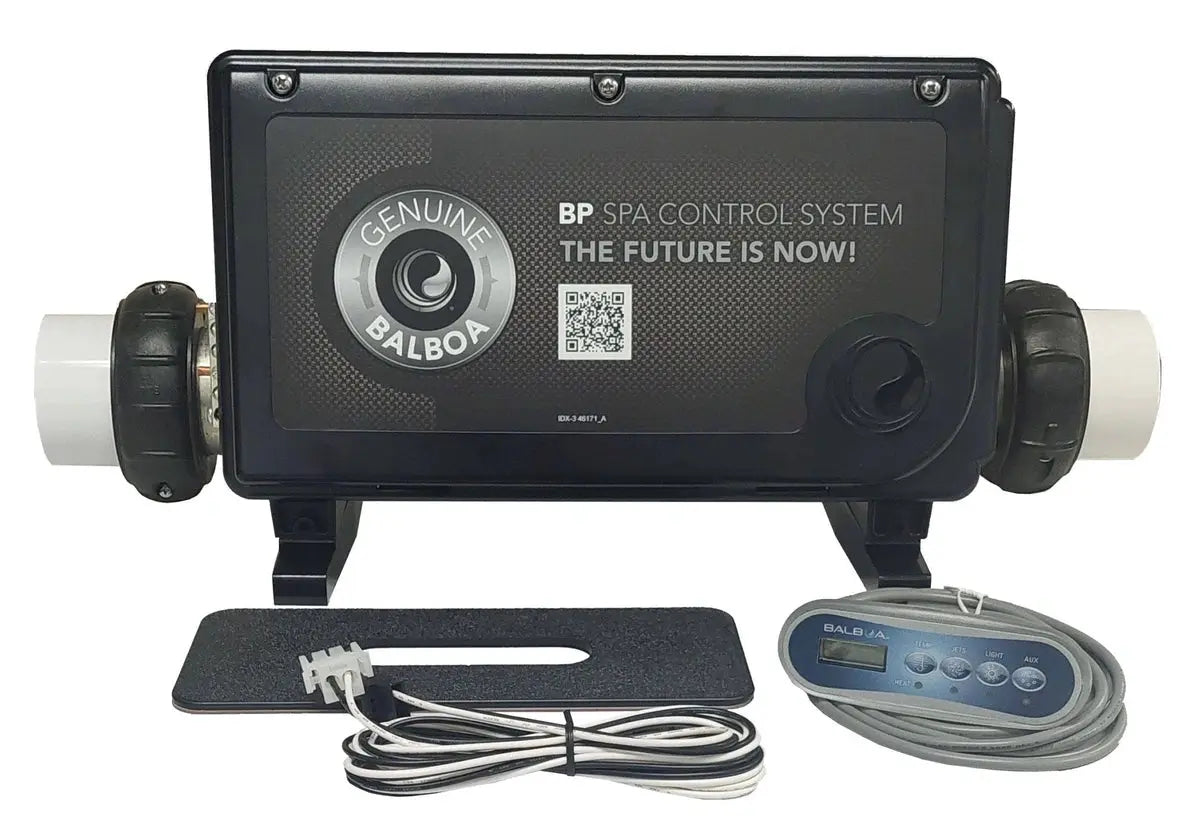

Balboa Water Group VS501Z Control System with 5.5kW Heater
Features:
- Controls a two-speed pump and a one-speed pump or blower
- 115/230v Ozone circuit
- 115/230v Circ Pump circuit (30GPM minimum)
- 12v spa light circuit
- Patented M7™ technology
- Plumb on pressure or vacuum side
- US & Canadian safety approvals
Balboa Hot Sheets: Wiring Diagram and Dipswitch Settings Click HERE
The Value Series (VS) family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service.
The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.375/5.5kW heater and can support mini, duplex, or standard digital control panels.
Control Box Dimensions
| Height |
Width |
Depth |
| 10-9/16" |
12-1/4" |
4-1/2" |
