Description

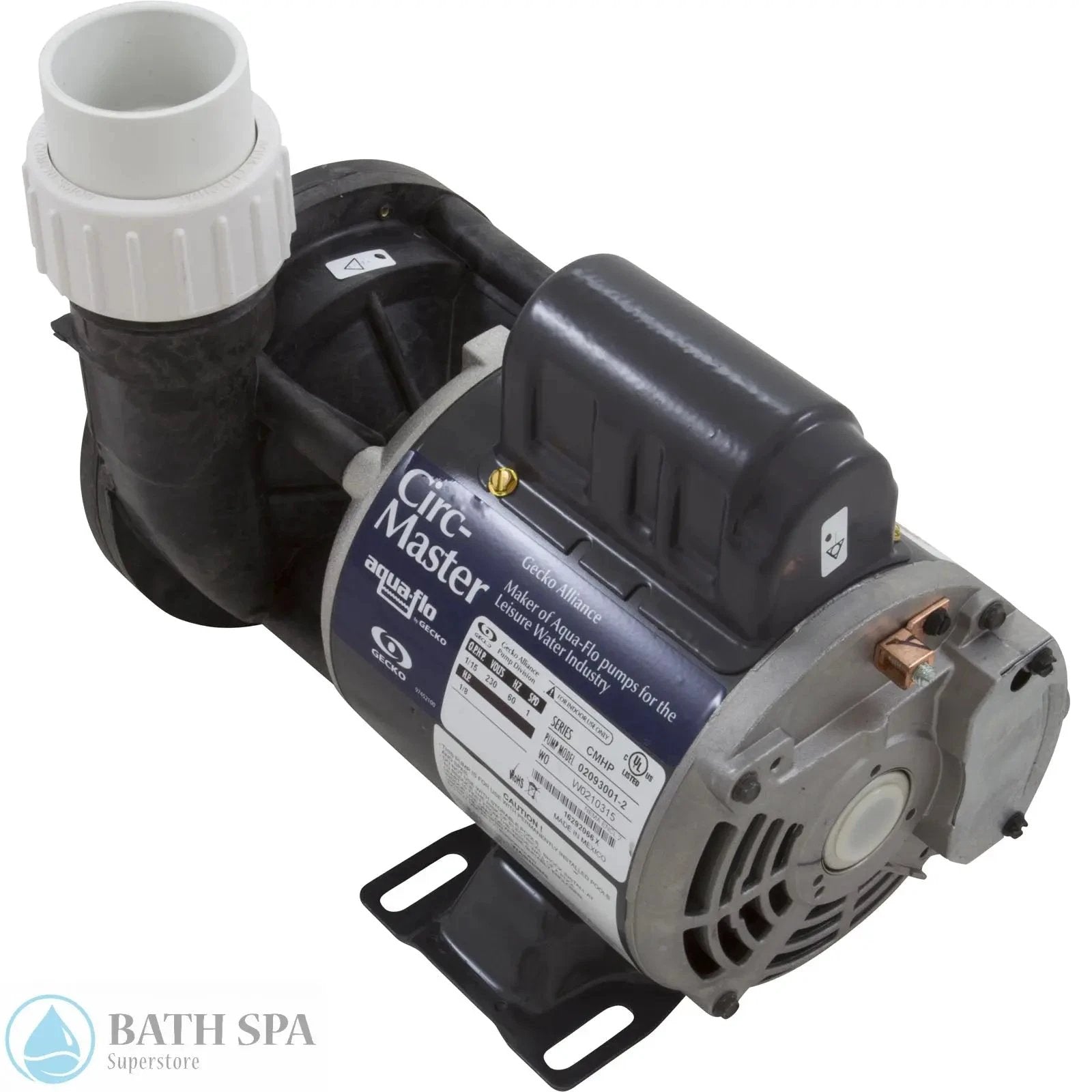

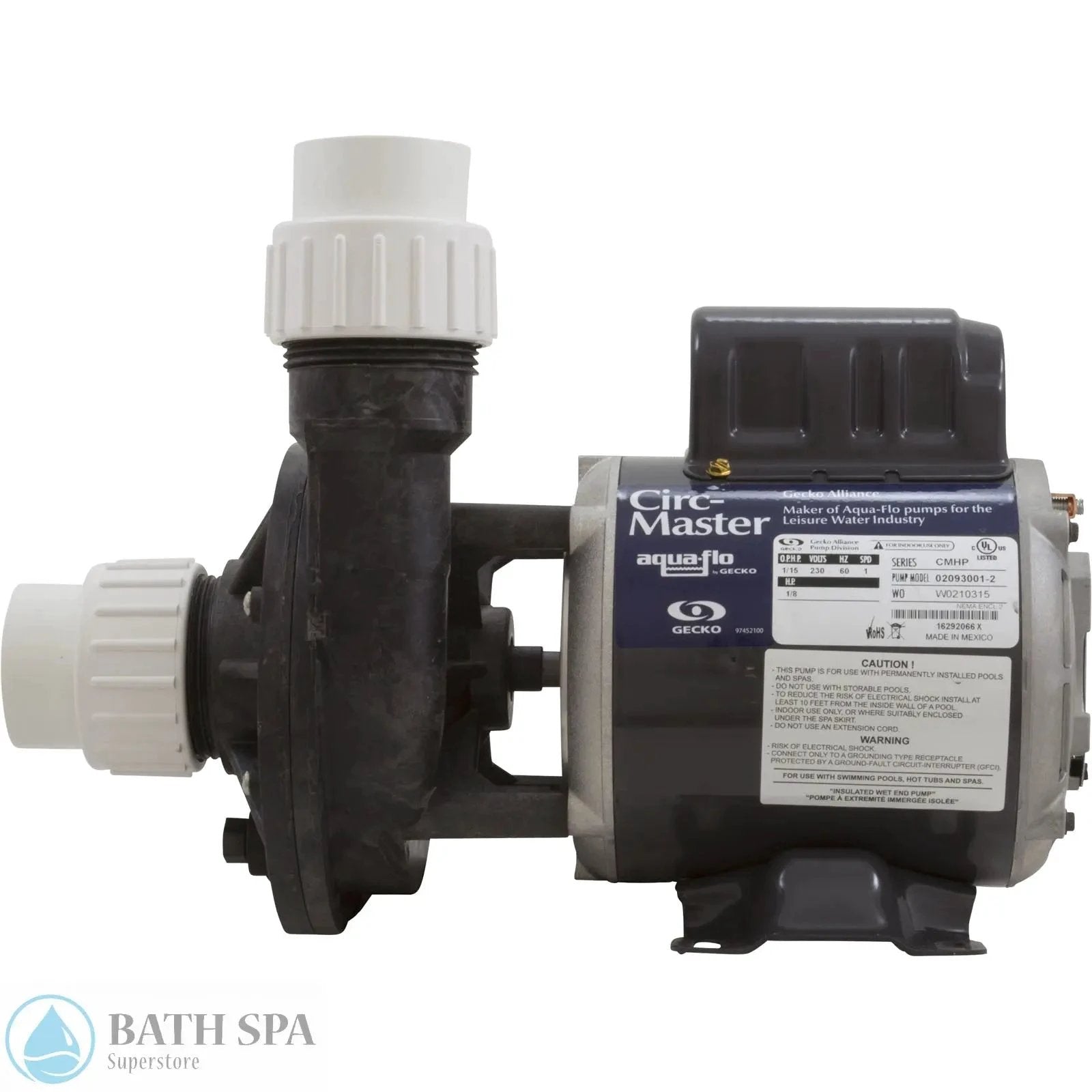

Gecko AquaFlo Circ-Master CMHP 230V is a compact, purpose-built spa circulation pump engineered for reliability, efficiency, and effortless maintenance. With its 1/15 HP motor, 1-1/2" suction and discharge, and a durable 48-frame design, this OEM Circ-Master pump is ready to sustain continuous spa filtration and heating performance around the clock.
- High-flow efficiency for spa filtration — Designed to deliver the highest GPM among spa recirculation pumps, enabling faster filtration cycles and robust compatibility with high-flow spa heating systems.
- Engineered for continuous-duty life — Front and rear permanently lubricated ball bearings plus a carbon-graphite self-lubricating seal ensure long-term reliability in demanding spa environments.
- Simple, flexible installation — 1-1/2" suction and 1-1/2" discharge with quick-release compression fittings for quick install or service. Drain plug locations at 3, 6, or 9 o'clock provide installation flexibility.
- Versatile mounting and discharge options — Available in side discharge and center discharge models, with motor voltages of 230V (as listed) and 115V variants to fit a wide range of spa configurations.
- Compact yet powerful — 48-frame thru-bolt motor with a low 0.6A draw, delivering dependable performance without excessive power use.
- OEM-grade quality from Gecko — Part of AquaFlo by Gecko, designed for spa builders and service technicians who demand consistent interaction, longevity, and compatibility with Gecko’s ecosystem of controls and accessories.
The Circ-Master CMHP takes 24-hour filtration to a new level by sustaining strong flow through your spa’s filtration loop and heating system. Its high-volume circulation supports faster filtration cycles, resulting in clearer water and more efficient heating—meaning you can enjoy warmer water sooner with less downtime. The pump’s durable construction and self-lubricating seal minimize maintenance, while the quick-release fittings simplify installation and future servicing.
Who benefits most from the Gecko AquaFlo CMHP Circ-Master? spa owners upgrading aging pumps, technicians performing routine spa maintenance, and builders outfitting new or renovated spa installations. If you’re seeking a reliable, efficient circulation pump that integrates seamlessly with Gecko’s control systems and spa accessories, the CMHP is a thoughtful, future-proof choice.
Tip: When planning installation, note the drain plug location options (3, 6, or 9 o'clock) and the available connection types (female pipe thread on the suction side and male buttress thread on the discharge side) to match your plumbing layout. This attention to installation details helps ensure a quiet, leak-free operation from day one.
| Accessory Pump Type | Circulation |
| Manufacturer | AquaFlo/Gecko |
| Pump Model | CMHP |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 3,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Horsepower | 1/15hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 0.6A |
