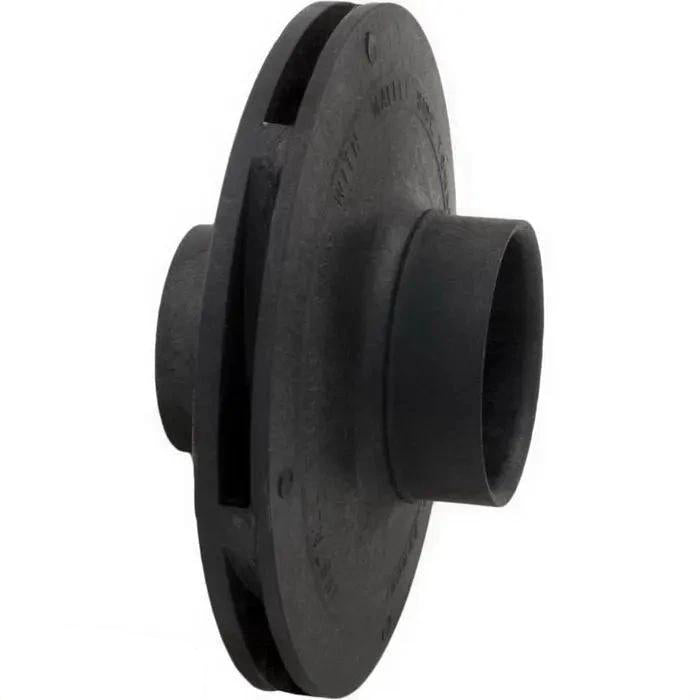

Pentair UltraFlow 1.5 HP Generic Impeller (39005200)
American Products/Pentair Pump Impeller
Closed face impeller made for the Ultra-Flow pool pump by American Products/Pentair. Rated at 1.5hp, it is used in an Ultra-Flow pump body, and must be installed on a 1.5hp (or greater) square flange motor. Shaft seal sold separatel
| Impeller Type |
Closed Face |
| Impeller Diameter OD |
4-13/16" |
| Vane Width ID |
1/4" |
| Eye Diameter OD |
2" |
| Eye Length |
5/8" |
| Impeller Width OD |
1/2" |
| Seal Seat Depth |
3/8" |
| Shaft Length |
n/a |
| Shaft Diameter OD |
n/a |
| Seal Seat Diameter OD |
1-1/4" |
| Manufacturer |
American Products/Pentair |
| Pump Application |
UltraFlow |
