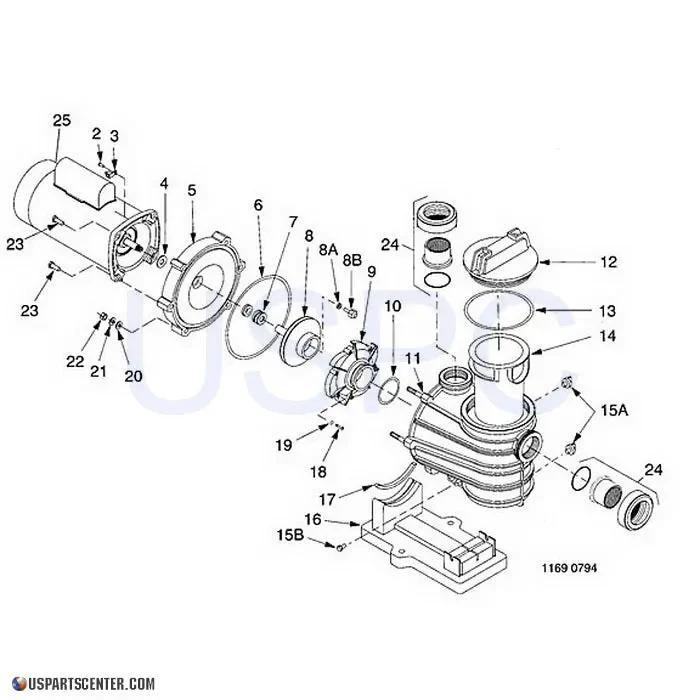

StaRite Dyna-Glas/Dyna-Max Pump Components

Key

Part #

Description

Manf.#

35-102-1200

Seal Gasket Kit Dyna-Glas/Dyna-Max

PP3000

2

35-102-1004

Screw #10-32x1/2"

U30-692SS

3

35-102-1005

Bonding Lug

U17-568

4

35-102-1202

Water Slinger Dyna-Max Series

17351-0009

4

35-102-1010

Water Slinger

17351-0009

5

35-102-1204

Seal Plate Dyna-Glas/Dyna-Max

C3-184P

6

AO-469-O

O-Ring, Seal Plate, Dyna-Glas/Dyna-Max (O-469)

U9-373

7

AS-201

Shaft Seal Assembly (Repl U109-358SS)(Generic PS-201)

37400-0027S

8

35-102-1216

Impeller 2.5HP C105-236PEA

C105-236PEA

8

35-102-1218

Impeller 1.5HP 2-Spd C105-236PF

C105-236PF

8

35-102-1220

Impeller 2HP 2-Spd C105-236PGAB

C105-236PGAB

8

35-102-1210

Impeller 1HP C105-236PB

C105-236PB

8

35-102-1208

Impeller 3/4HP C105-236P

C105-236P

8

35-102-1214

Impeller 2HP C105-236PDA

C105-236PDA

8

35-102-1212

Impeller 1.5HP C105-236PC

C105-236PC

8A

35-102-1221

Gasket for Impeller Lockscrew

33455-1047

8B

35-102-1180

Impeller Screw

37337-6080

9

35-102-1228

Diffuser 1.5HP-2.5HP Dyna-Glas/Dyna-Max C1-270P

C1-270P

9

35-102-1226

Diffuser 3/4HP Dyna-Glas/Dyna-Max C1-270PB

C1-270PB

9

35-102-1227

Diffuser 1.0HP Dyna-Glas/Dyna-Max C1-270PC

C1-270PC

10

AO-83-O

O-Ring, Diffuser Dura/Maxi II(O-83)

U9-374

11

35-102-1230

Tank & Trap Body Only Dyna-Glas/Dyna-Max

C76-58P

12

35-102-1169

Trap Lid Assy (Biguanide Resistant)

C3-185P3

13

AO-12-O

Trap Cover O-Ring(O-12)

U9-375

14

35-102-1172

Basket, Dura/Maxi II , Dyna-Glas/Max

C8-58P

15A

35-102-1095

Drain Plug 1/4" NPT (fine thread)

U178-920P

15B

35-102-1234

Mounting Screw 5/16-14x5/8"

U30-919SS

16

35-102-1237

Base, Plastic, Dyna-Glas/Dyna-Max

C4-77P

17

35-102-1239

Motor Pad For Plastic Base

C35-45

18

35-102-1100

Screw #8-32 x7/8"

U30-542SS

19

35-102-1105

#8 Lock Washer

U43-21SS

20

35-102-1240

Flat Washer 3/8"

U43-62SS

21

35-102-1242

Lockwasher 3/8"

U43-12SS

22

35-102-1243

Nut, 3/8-16 Hex

U36-38SS

23

35-102-1130

Capscrew, 3/8-16x1" Hex Head

U30-74SS

24

89-102-1055

Pkg 189 2"UN x 2"FPT Pump Union (Set of 2)

PKG-189

24

89-102-1050

Pkg 188 2"UN x 2"S Pump Union (Set of 2)

PKG-188
